Before You Begin

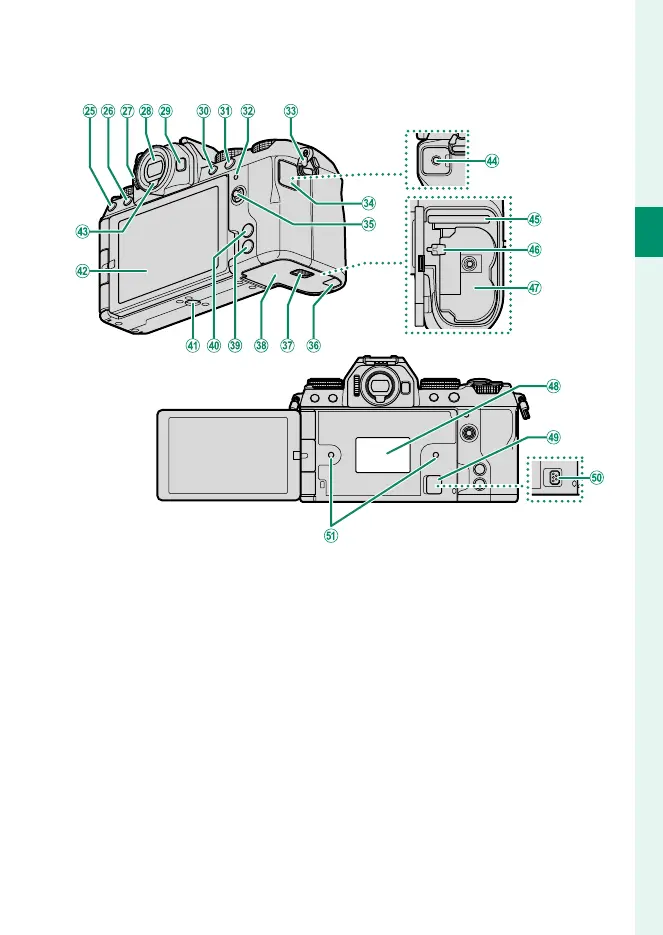

Parts of the Camera
Y
I(drive) button .....................................5, 110
b(delete) button ...........................................53
Z
a(playback) button ...................................50
a
Diopter adjustment control ...........................9
b
Electronic viewfi nder (EVF)
.....................................................10, 14, 17, 25
c
Fn button........................................................317
d
AEL (exposure lock) button ..............109, 317
e
AFON button .........................................109, 317
f
Indicator lamp ..........................................8, 200
Tally light ........................................................200
g
Strap clip............................................................32
h
Headphone jack cover
i
Focus stick (focus lever)...................5, 97, 289
j
Cable channel cover for DC coupler
k
Battery-chamber cover latch ......................34
l
Battery-chamber cover .................................34
m
DISP (display)/BACK button ............... 17, 221
x(Bluetooth) button .................................. 247
n
MENU/OK button .............................................22
o
Tripod mount
p
Vari-angle LCD monitor .................... 9, 12, 14
Touch screen .................................25, 165, 298
q
Eye sensor ..........................................................15
r
Headphone jack (⌀3.5mm) .....................215
s
Memory card slot ............................................34
t
Battery latch .....................................................35
u
Battery chamber .............................................34
v
Serial number plate..........................................7
w
Cooling fan connector cover .................... 347
x
Cooling fan connector ...............................347
y
Hole to screw cooling fan ..........................347
