FujiFilm FF220002 - Parts of the Camera

2
1
Before You Begin

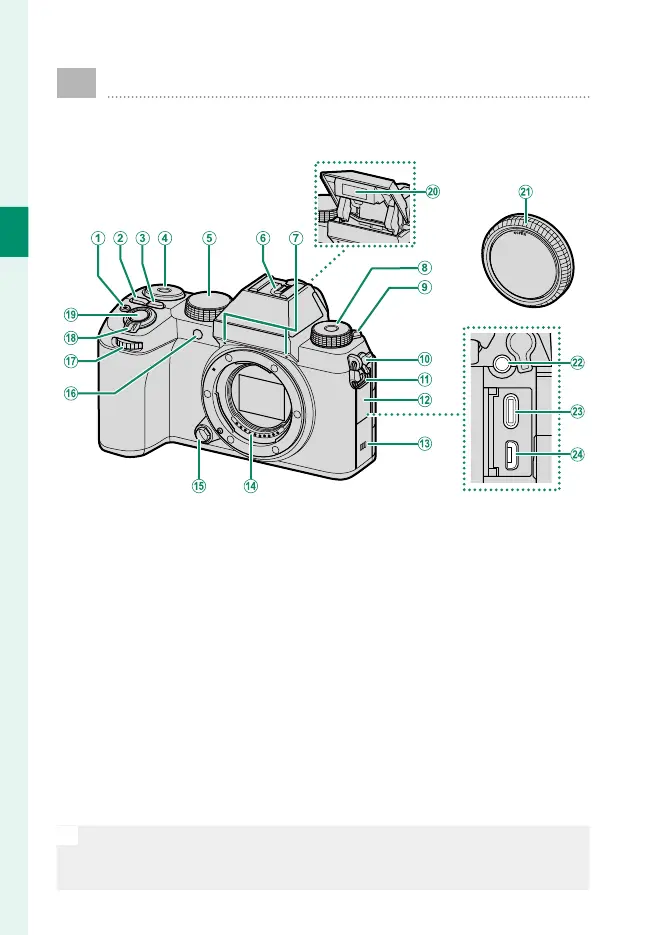

Parts of the Camera
A
t(movie recording) button .......................56
B
Q (quick menu) button ...............................311
C
ISO button ......................................................317
D
Rear command dial ................................6, 223
E
Mode dial .............................................. 4, 48, 56
F
Hot shoe .........................................................338
G
Microphone ............................................ 61, 214
H
Fn (function) dial .....................................7, 320
I
N(fl ash pop-up) lever ................................123
J
Microphone/remote release connector
cover
K
Strap clip............................................................32
L
Connector cover
M
Speaker .................................................... 63, 277
N
Lens signal contacts
O
Lens release button ........................................33
P
AF-assist illuminator...................................155
Self-timer lamp ............................................169
Tally light ........................................................200
Q
Front command dial ........................................6
R
ON/OFF switch .................................................41
S
Shutter button .................................................49
T
Flash ................................................................123
U
Body cap ............................................................33
V
Microphone/remote release connector
(⌀3.5mm) ........................................... 61, 215
W
USB connector (Type-C) ..................... 37, 246
X
HDMI Micro connector (Type D) ................51
O
V
Use of an optional RR-100 remote release requires a third-party
adapter to convert the three-pin, ⌀2.5 mm connector to a three-
pin, ⌀3.5 mm connector.
