5.3 Cabling the ETERNUS CS800 S6 System

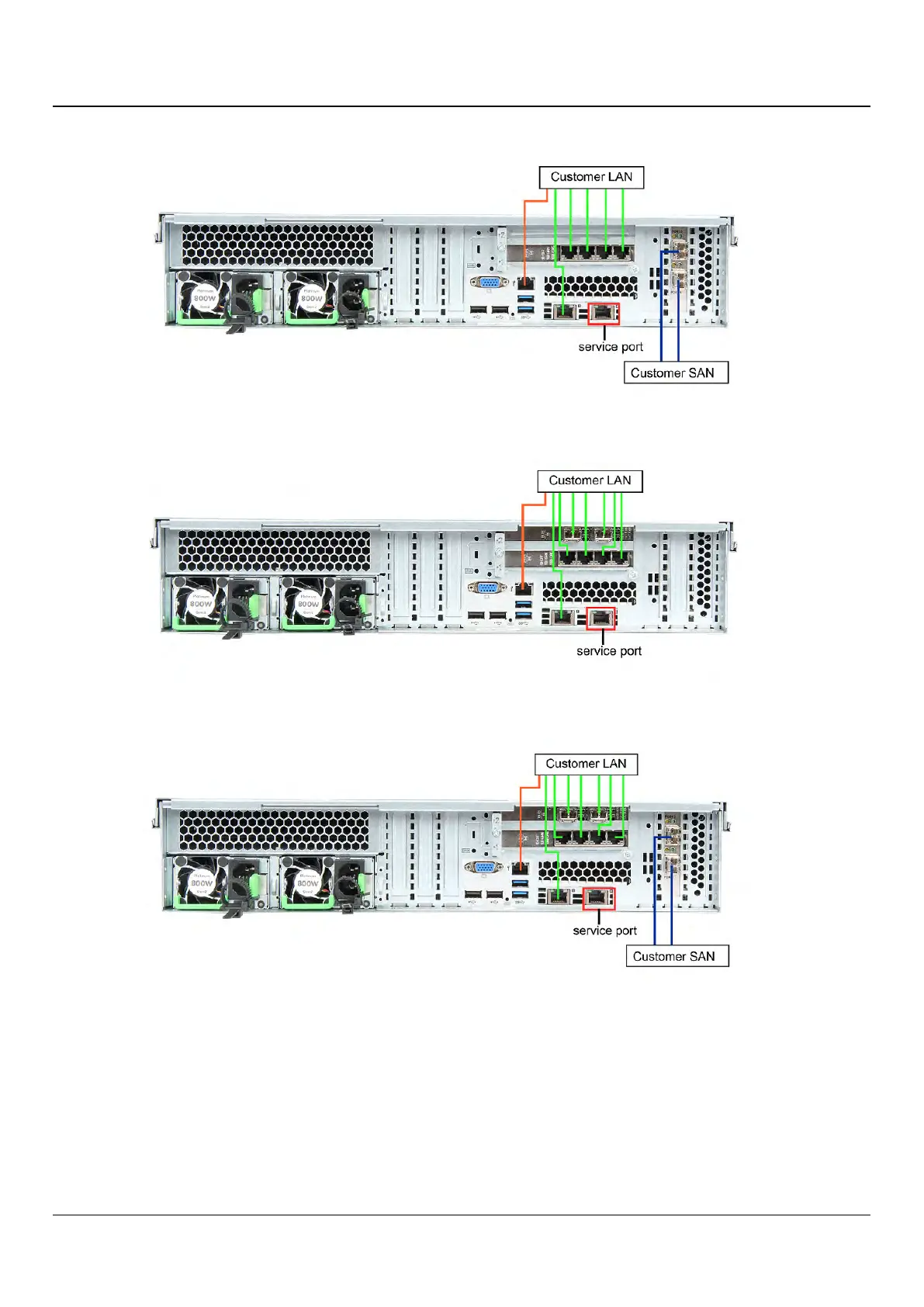

Figure 61: Entry System with 8 Gb/s Fibre Channel
Figure 62: Entry System with 10 Gb/s Ethernet
Figure 63: Entry System with 8 Gb/s Fibre Channel and with 10 Gb/s Ethernet
Proceed as follows to connect the ETERNUS CS800 S6 Entry:
1. Connect a power cable to each power supply of the server.
2. Connect the LAN ports and optionally the iRMC port to the appropriate networks. At
ETERNUS CS800 90

Fujitsu ETERNUS CS800 S6 Specifications

General

Storage drives installed	-
Installed storage drive type	HDD
Total installed storage capacity	- TB
Maximum supported storage capacity	24 TB
Chassis type	Rack (2U)
Certification	CSA-C22.2 No. 60950-1, GOST-R, UL 60950-1, EN 60950-1, IEC 60950-1, CNS 13438, FCC Part-15 Class A, ICES 003 Class A, BSMI Class A, C-Tick, AS/NZ CISPR 22 Class A, EN 55022 Class A, VCCI Class A
Product color	Black
Sustainability certificates	RoHS
RJ-45 ports quantity	1
Remote management port	RJ-45 (Gigabit)
AC input voltage	200-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	290 W
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Software support	Atempo (Time Navigator), Commvault Software, Computer Associates (BrightStor ARCserve Backup), EMC (NetWorker), HP (DataProtector), IBM (Tivoli Storage Manager), Quest (NetVault, vRanger), Veritas (Backup Exec, NetBackup), Veeam (Backup & Replication)

Weight and Dimensions

Depth	770 mm
Width	482.6 mm
Height	88.9 mm
Weight	25000 g
