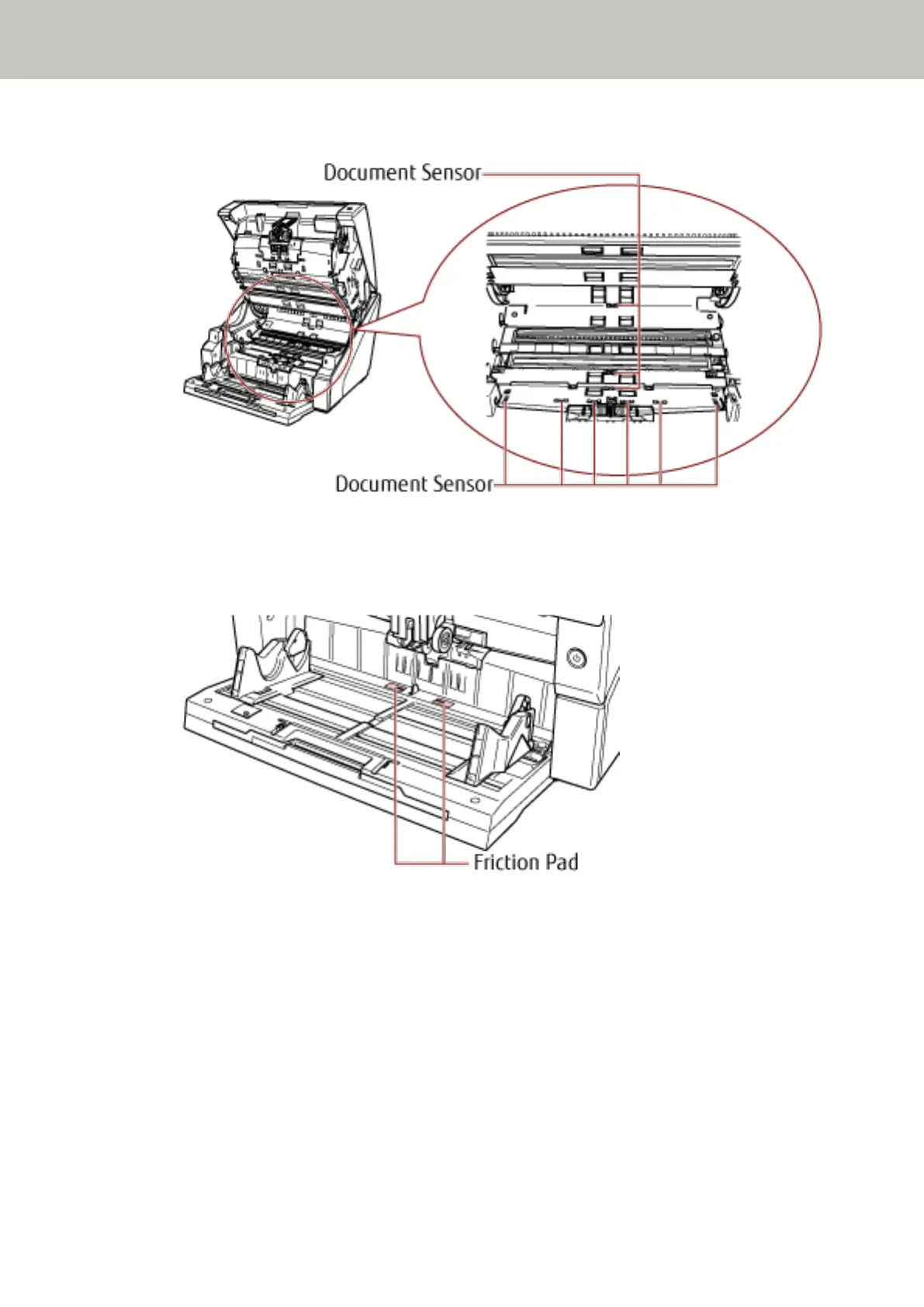

● Paper path lower-side (sensors: 9 units)
Friction Pad (2 units)
Clean off the dust quickly.
Friction pads are located on the hopper table.
Feed Roller/Assist Roller
There are two types of feed rollers, one must be cleaned as you rotate the roller manually, and the other
must be cleaned as you rotate the roller with the power turned on.
The assist roller must be cleaned as you rotate the roller with the power turned on.
Daily Care
131
