6 Install two of the threaded-hole standoff types in the mounting holes identified in Step 5
[p. 4-47] per the applicable figure. Ensure that the applicable external tooth washers and flat
washers are installed on the standoffs before you tighten them. See Figures 4-33 [p. 4-50]
through 4-36 [p. 4-53] for the applicable illustration.
Note: The standoff locations that mount directly to the ETSI rack, and not on the mounting flange of
an equipment shelf, require that the flat washer act as a spacer.

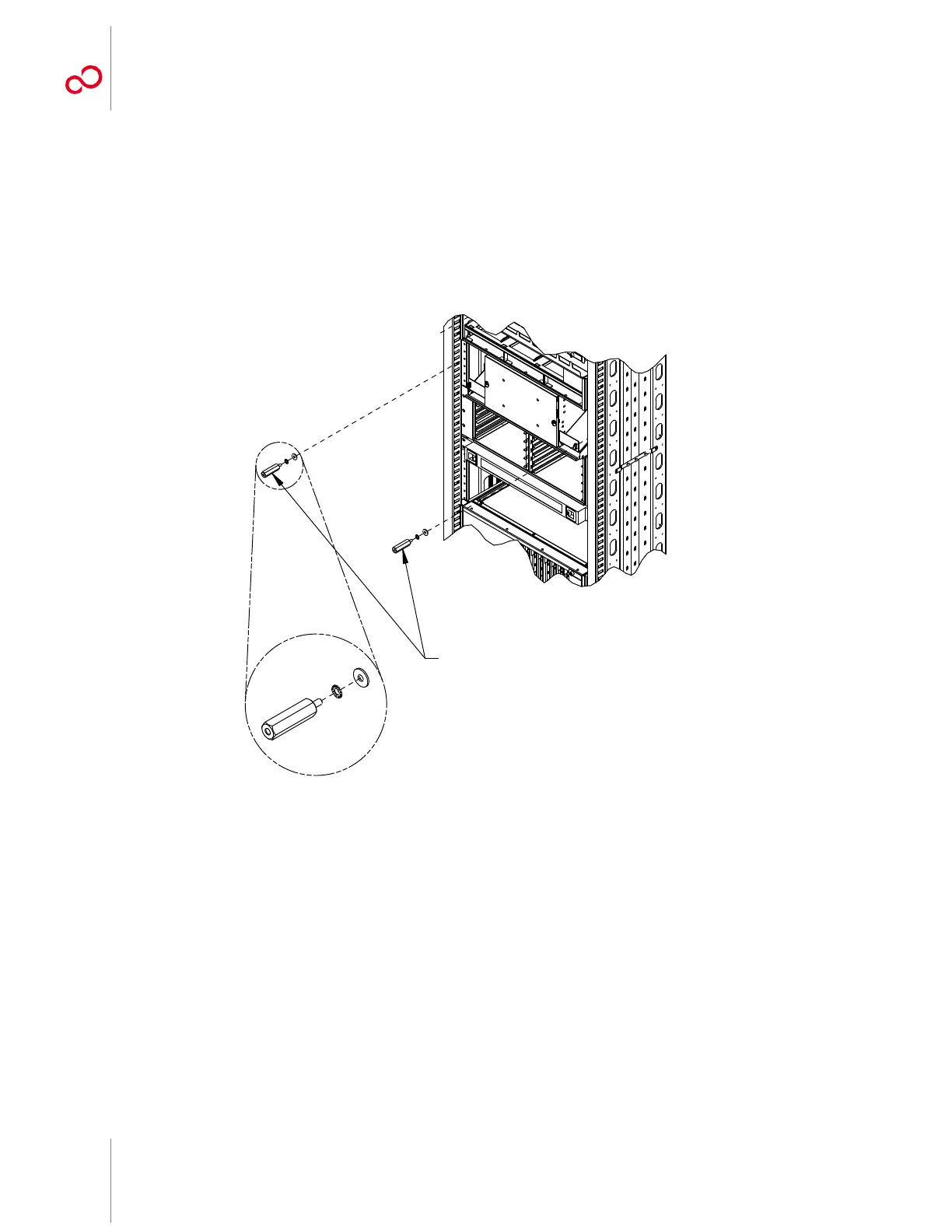

Figure 4-33: Middle Cover Standoffs (One LAM/DCM Shelf)
r1425_1
Install in indicated locations:
2 PC210-0001-X027 standoffs, pin/socket
2 D4-WTE250-33 external tooth washers
2 D4-WP250N-33 flat washers
