CHAPTER 4
ETSI Configuration
Installing Fans, Rack Covers, and End Panels
FNC-7500-0061-200
Issue 1, May 2009
FLASHWAVE 7500 Release 6.1
Equipment Installation
4-56
Fujitsu and Fujitsu Customer Use Only

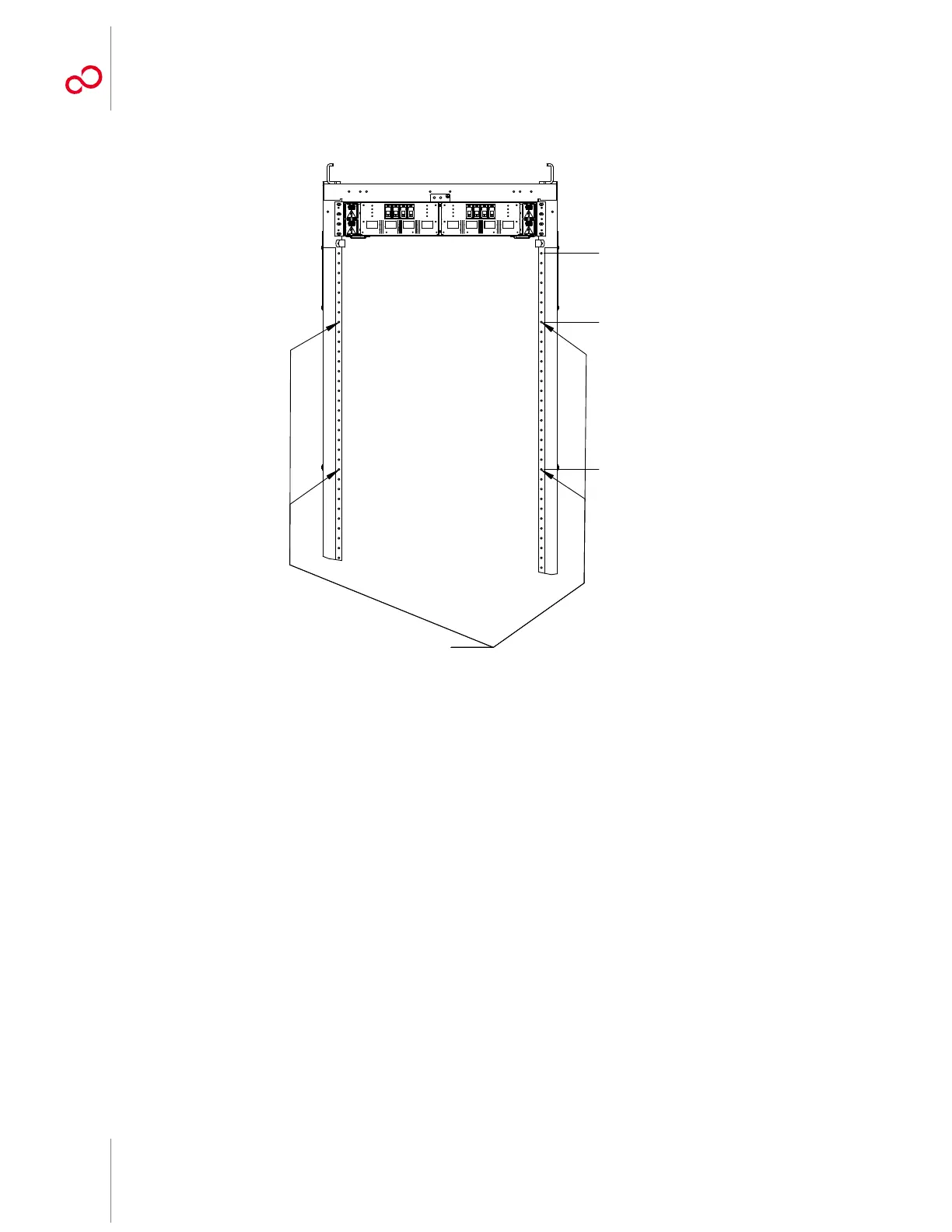

Figure 4-39: Upper Cover Standoffs without Upper FLASHWAVE 7500 Shelf
r1431_1
Mark mounting locations
(typical both sides).
Hole 23
Hole 8
Hole 1
