Replacing the Pick Roller
342

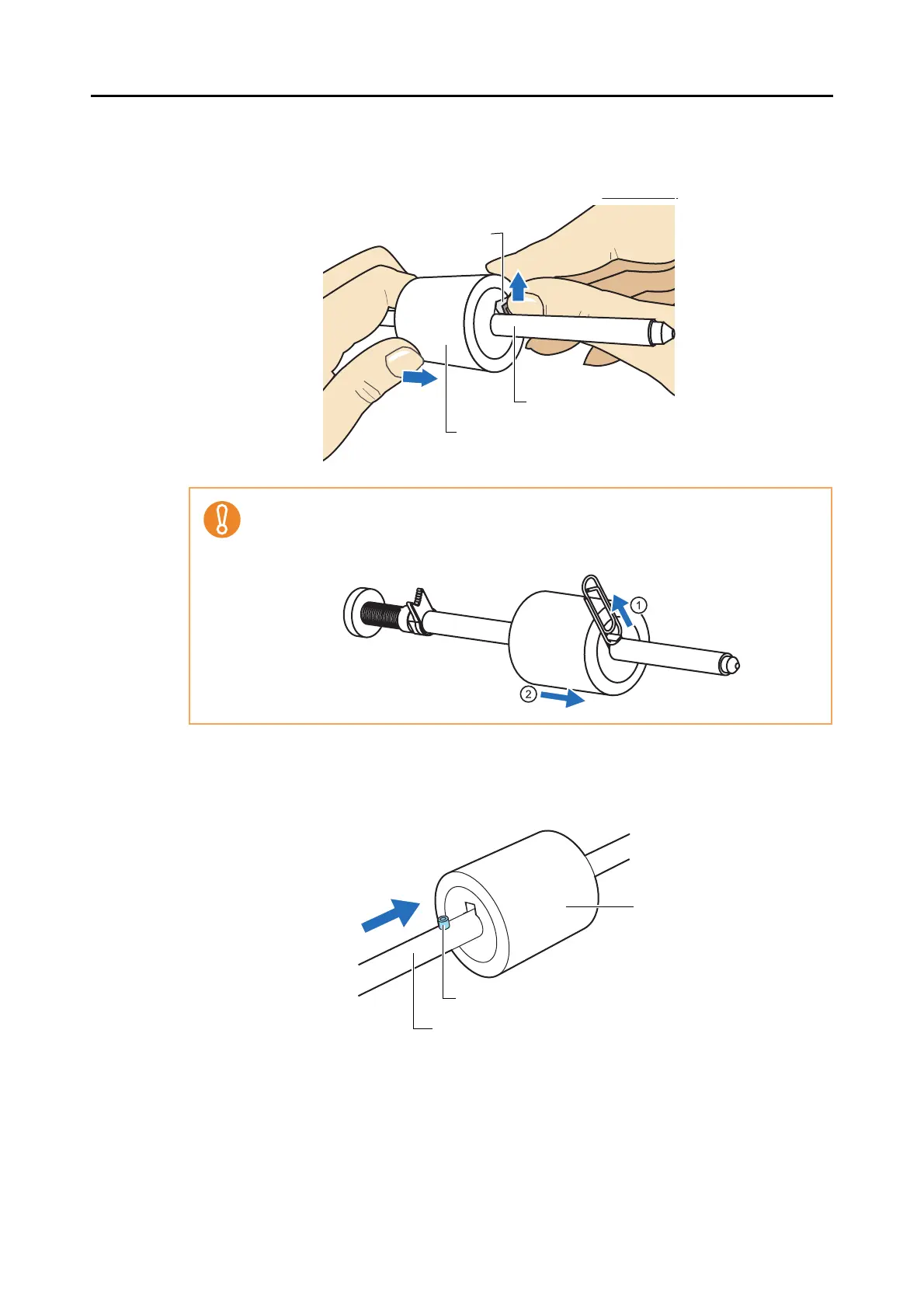

7. Remove the pick roller from its shaft.
⇒ Pull out the shaft from the pick roller while lifting up its tab.
8. Attach the new pick roller to the shaft.
Insert the shaft aligning the protrusion with the slot on the new pick roller.
If you push up the pick roller tab using your fingernail, your fingernail may be hurt or get
chipped.
If you cannot push it up successfully with your fingernail, use a paper clip to push up the
pick roller tab.
Shaft
Pick roller
Pickup tab
Protrusion
Shaft
Pick roller
