Replacing the Pick Roller
343

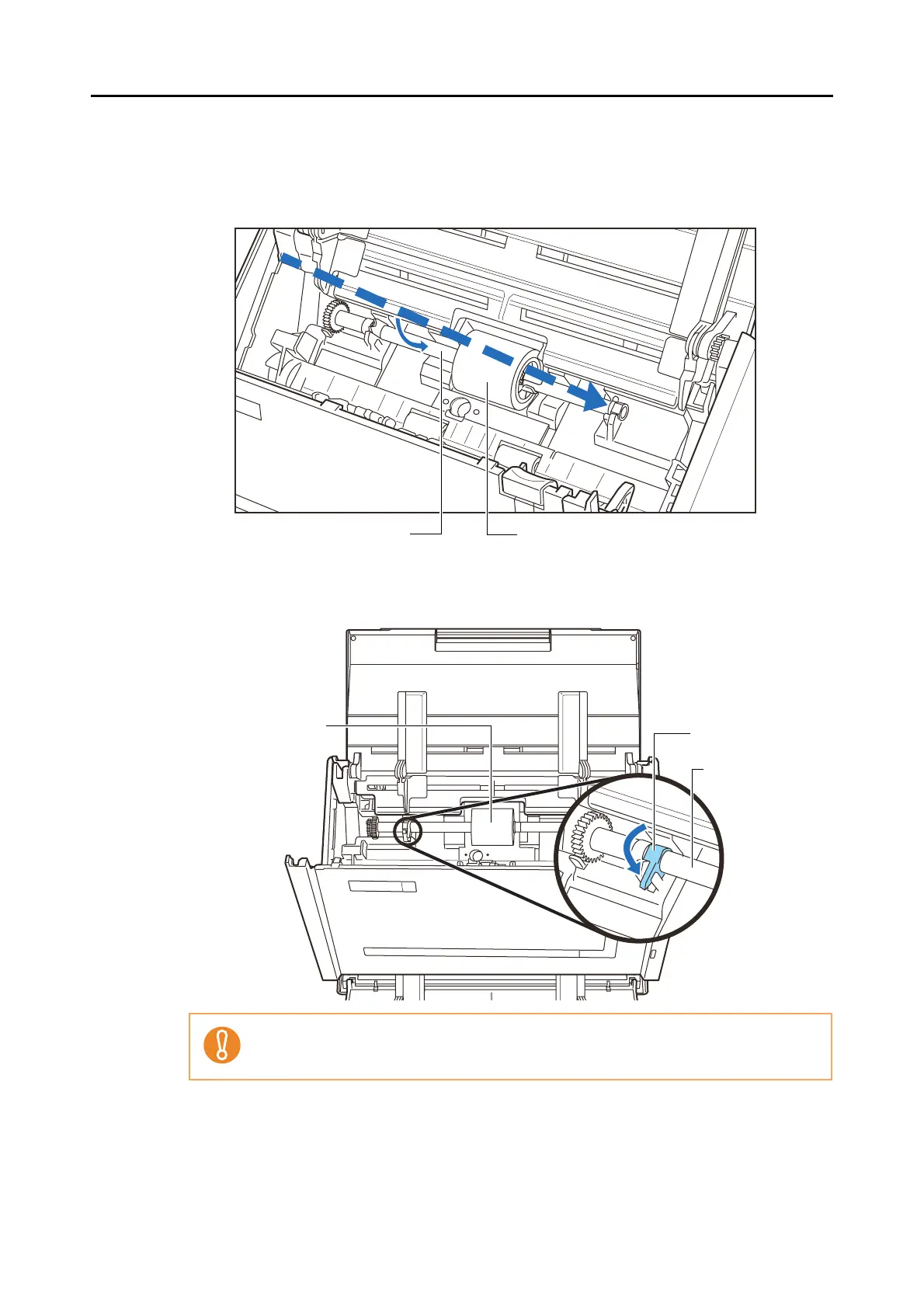

9. Install the pick roller with its shaft to the ScanSnap.
Insert the right end of the shaft to the bushing (right), and set the shaft to the slot while
lowering it.
10.Secure the bushing (left) by rotating it in the direction of the arrow.
Make sure that the pick roller is completely attached. Otherwise, document jams or other
feeding errors may occur.
Pick roller
Shaft
Shaft
Bushing
Pick roller
