Replacing the Pick Roller
344
11.Attach the sheet guide to the ScanSnap.

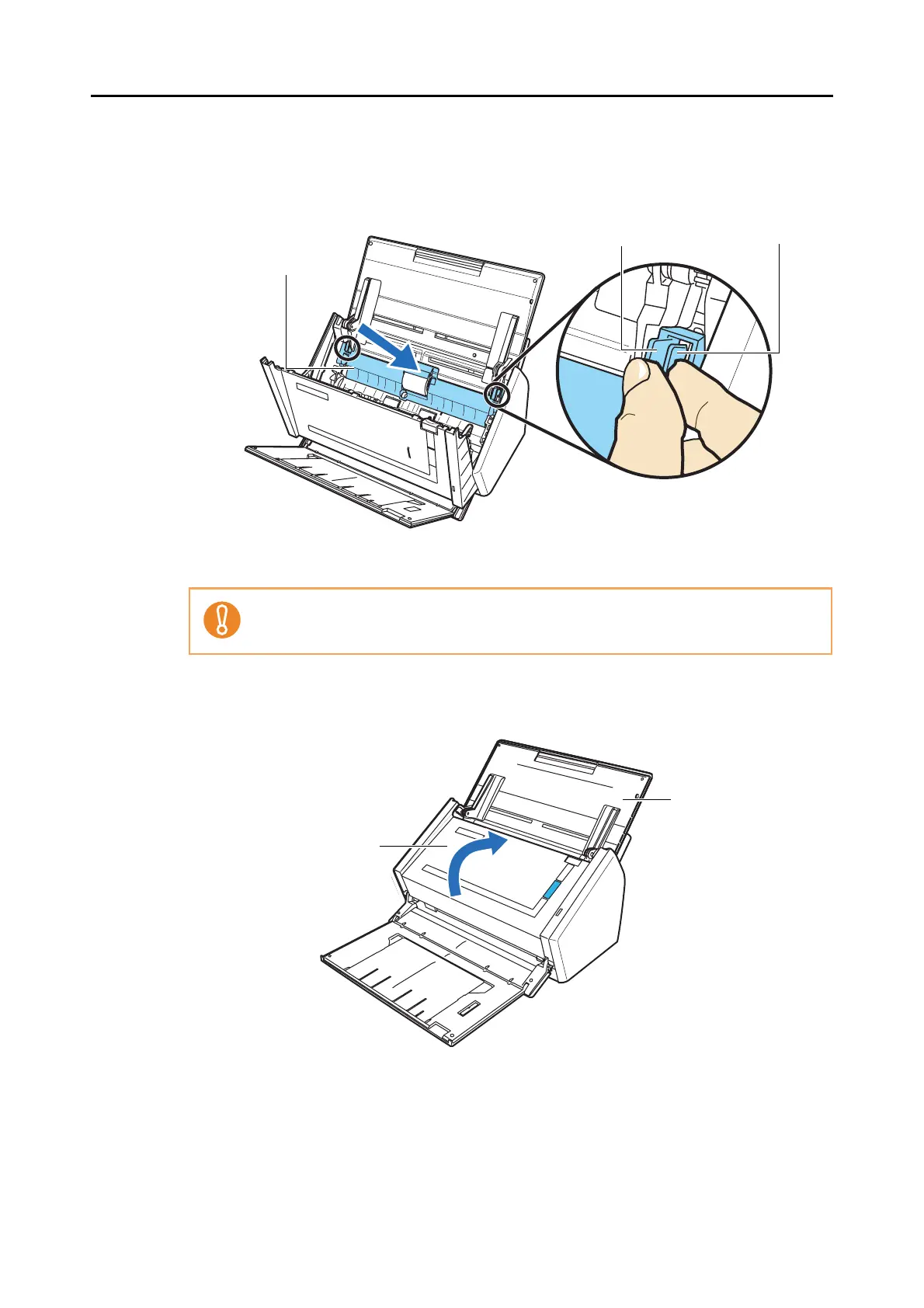

Hold the pickup tabs on the sheet guide between the thumb and index finger, and then
attach the sheet guide to the ScanSnap.
⇒ The sheet guide makes a clicking sound when the pickup tabs fix into position.
12.Close the ADF top section.
⇒ You should hear the ADF top section click when it returns to its original position.
13.Turn on the ScanSnap.
Make sure that the sheet guide is completely attached. Otherwise, document jams or other
feeding errors may occur.
Sheet guide
Pickup tab
Pickup tab
ADF top section
ADF paper
chute (cover)
