DME Arc Approaches
• Left/right guidance relative to
the arc
• Manual arc leg activation
once aircraft is near the arc
The unit supports approaches
containing DME arcs.

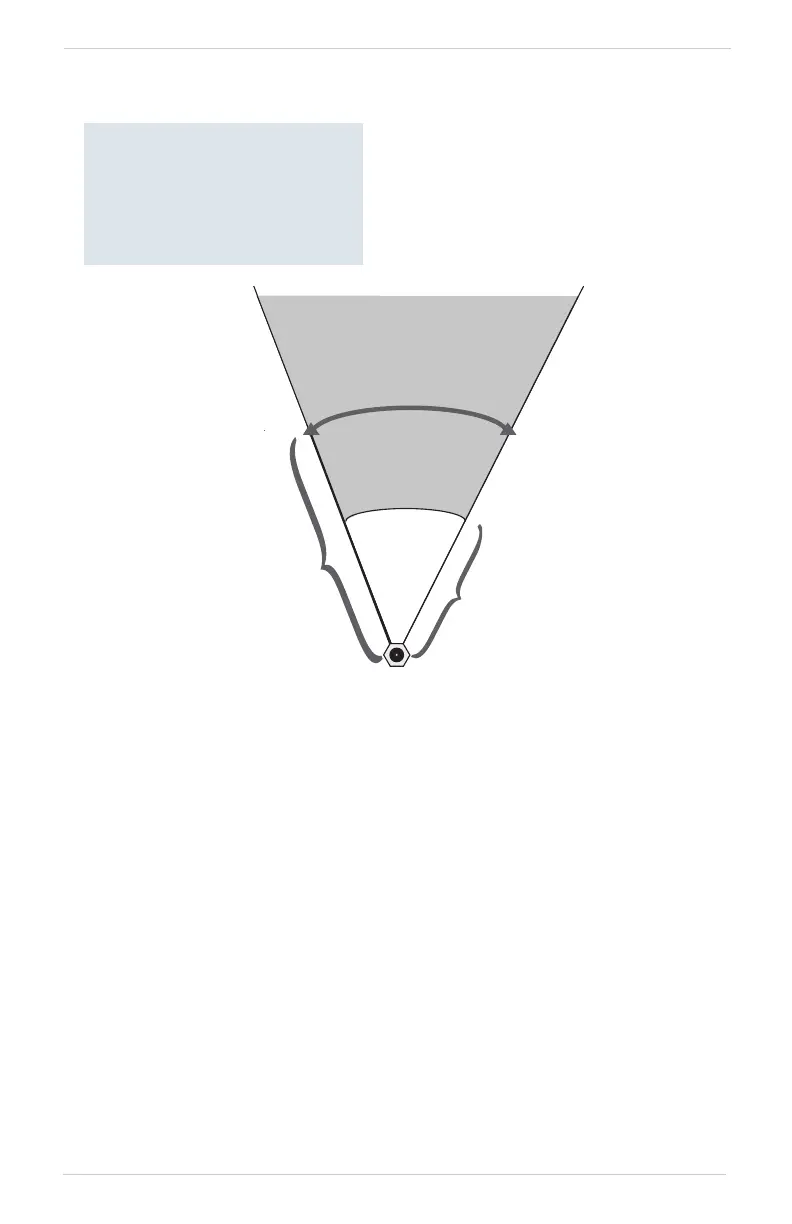

To manually activate DME Arc, the
aircraft must be within the shaded area.
Intermediate
Approach
Fix
Initial
Approach
Fix
Arcing Fix (VOR)
DME Arc
1/2 X
X
