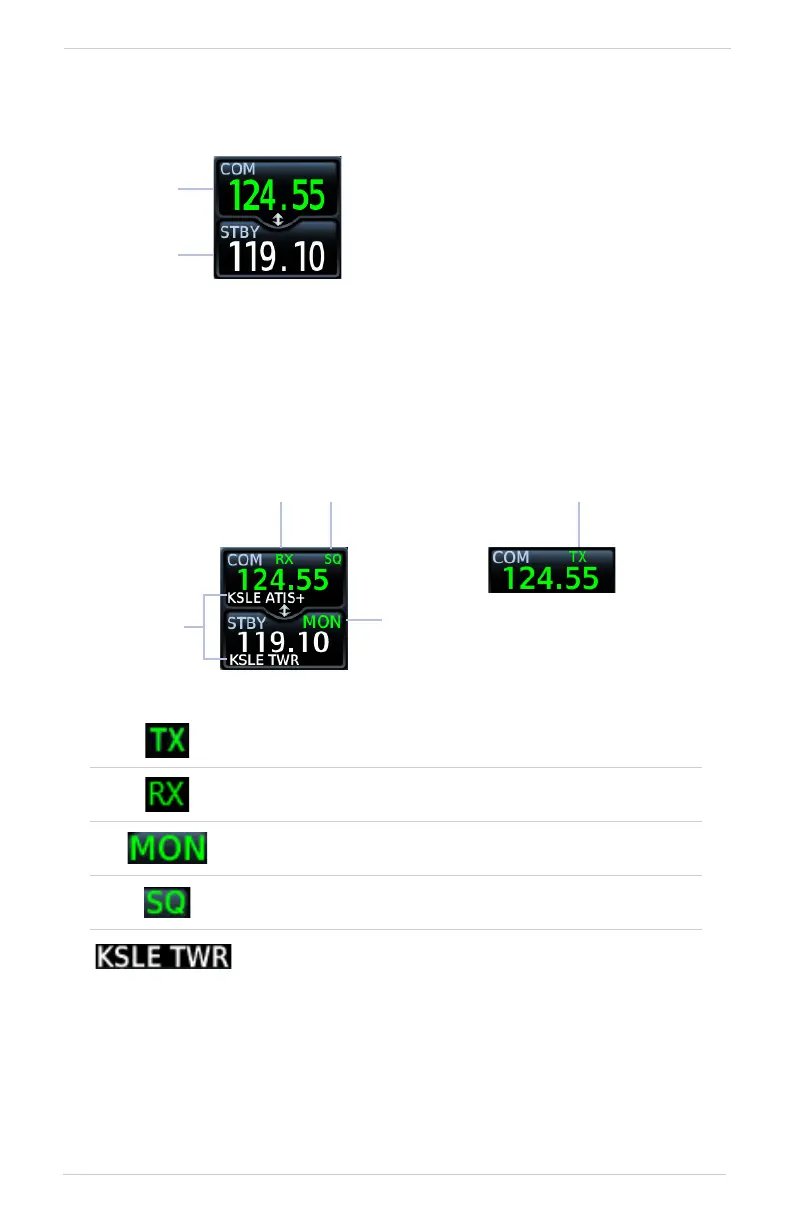

COM STATUS INDICATIONS
Status annunciations denote active functions, modes, and frequency types.
Transmitting
Receiving transmission
Monitor mode active
Automatic squelch is overridden (i.e., squelch is open)
Reverse frequency information (sample text)
Communication frequencies are split
between two selectable windows:
The upper window presents the active
COM radio frequency. This is the
frequency currently in use for transmit and
receive operations.
The lower window presents the standby
radio frequency. This frequency may be set
and activated at any time.
Standby
Frequency
Active
Frequency
Frequency
Lookup
Result
Receiving
Transmission
Automatic Squelch
Overridden
Monitor
Mode
Active
Transmitting
