Hazard Awareness
190-02488-01 Rev. B Pilot’s Guide 5-27
TRAFFIC UNITS

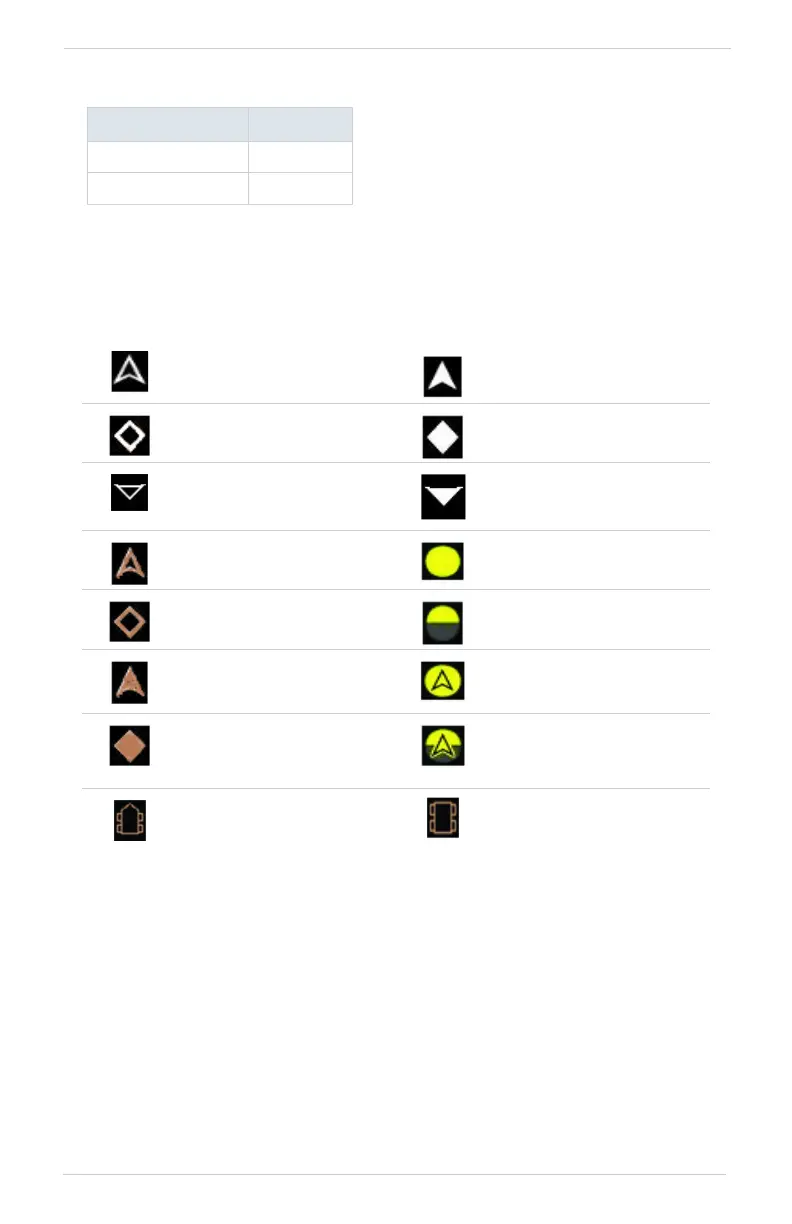

ADS-B TRAFFIC SYMBOLS
Traffic Information is for advisory use only. The pilot is responsible for identifying and
avoiding traffic conflict.
Basic Directional Proximate Directional
Basic Non-directional Proximate Non-directional
Basic Off-scale
Selected
Proximate Off-scale
Selected
Directional
(On-Ground)
Non-directional Alerted
Non-directional
(On-Ground)
Off-scale Non-directional
Alerted Traffic
Proximate Directional
(On-Ground)
Directional Alerted Traffic
Proximate
Non-directional
(On-Ground)
Off-scale Directional
Alerted Traffic
Directional Surface
Vehicle
Non-directional Surface
Vehicle
PARAMETER UNITS
Altitude ft
Distance nm
Traffic units are always uniform.
Selections on the System Units page do
not affect the traffic display.
