5.19 Distance-amplitude curve
according to JIS Z3060-2002
(only USM 35X DAC and
USM 35S)
H Note:
The JISDAC function for echo evaluation with the
dictance-amplitude curve and additional classification
according to JIS Z3060-2002 is available in the
USM 35X DAC and USM 35X S.
You will find the functions for the distance-amplitude
curve according to JIS Z3060-2002 in the function
group JDAC. If required, select the setting JDAC in the
function group EVAMOD first.
– If required, go to the third operating level.
– Select the function group CFG2.
– Switch the function EVAMOD over to the setting
JDAC.
– Go to the second operating level.

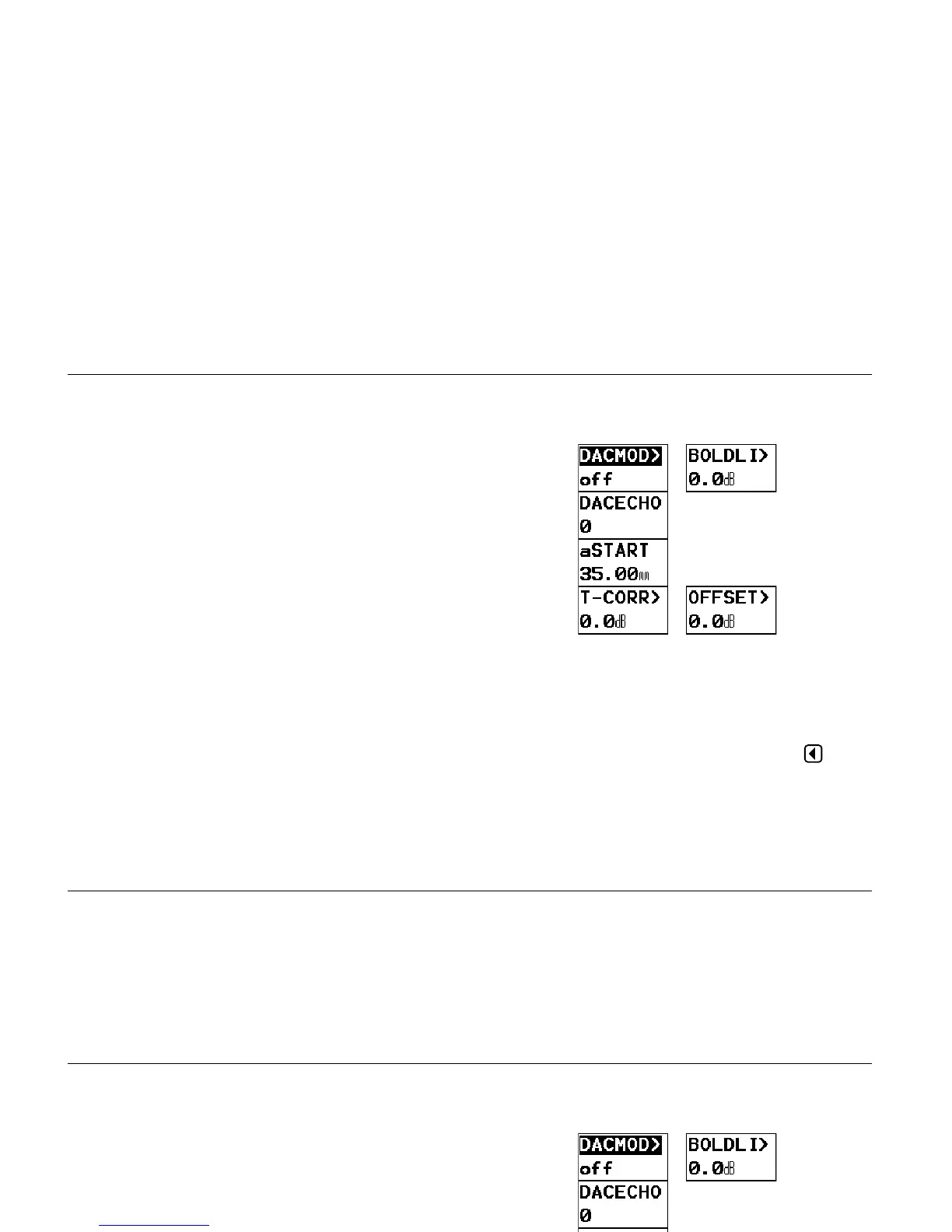

DAC according to JIS Z3060-2002 (only USM 35X DAC and USM 35S)
– Select the function group JDAC.
H Note:
Double assignment of the functions DACMOD/BOLDLI
and T-CORR/OFFSET. Toggle between the two functions
by repeatedly pressing the corresponding key .
5-66 Issue 01, 04/2005 Krautkramer USM 35X
Operation
5.19 Distance-amplitude curve
according to JIS Z3060-2002
(only USM 35X DAC and
USM 35S)
H Note:
The JISDAC function for echo evaluation with the
dictance-amplitude curve and additional classification
according to JIS Z3060-2002 is available in the
USM 35X DAC and USM 35X S.
You will find the functions for the distance-amplitude
curve according to JIS Z3060-2002 in the function
group JDAC. If required, select the setting JDAC in the
function group EVAMOD first.
– If required, go to the third operating level.
– Select the function group CFG2.
– Switch the function EVAMOD over to the setting
JDAC.
– Go to the second operating level.
DAC according to JIS Z3060-2002 (only USM 35X DAC and USM 35S)
– Select the function group JDAC.
H Note:
Double assignment of the functions DACMOD/BOLDLI
and T-CORR/OFFSET. Toggle between the two functions
by repeatedly pressing the corresponding key .
