5-2 Section 5-2 - General Information
Section 5-2
General Information
LOGIQ™ 5 PRO is a phased and linear array ultrasound imaging scanner. It has provisions for analog
input sources like ECG. A Doppler probe may also be connected and used.
The system can be used for:
- 2D Gray Scale and 2D Color Flow Imaging
- M-Mode Gray Scale Imaging
- Color M-Mode
- Doppler
- Different combinations of the above modes
LOGIQ™ 5 PRO is a digital beamforming system.
Signal flow travels from the Probe Connector Panel to the Front End Electronics, to the Back-End
Processor, and finally displayed on the monitor and peripherals.
System configuration is stored on the hard drive and all necessary software is loaded from the hard drive
on power up.

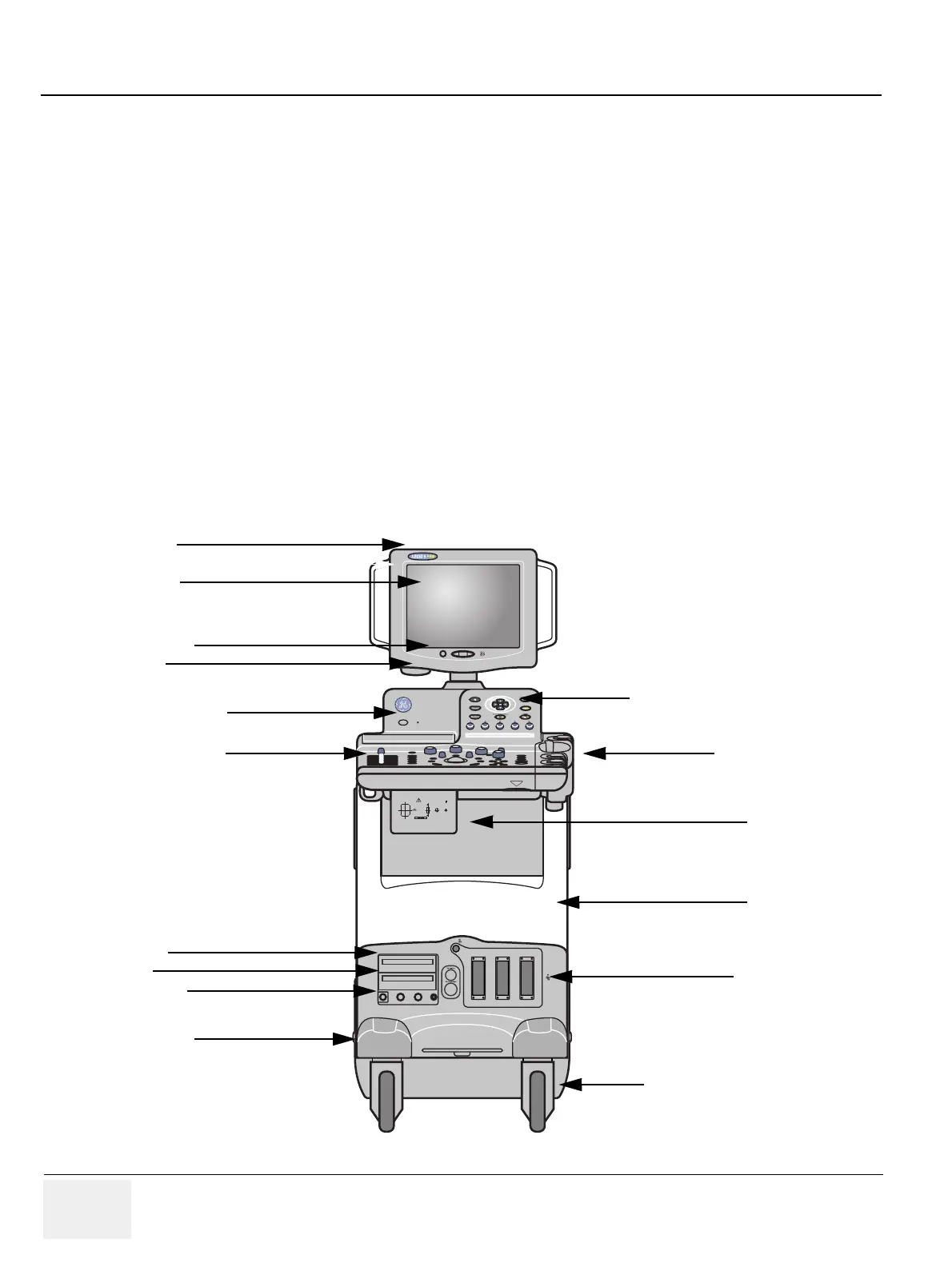

Figure 5-1 LOGIQ™ 5 PRO Major Components
Power
B/W Printer
Composite
B/W
Serial
Name Plate
Monitor
Monitor Controls
Menu Key Panel Area
TGC Slidepot Knobs
Front Cover
Probe Connector
Swivel Lock & Brake Release
Front Bumper
CD-ROM
MOD
ECG Module
Operator Console
B/W Printer
Power On/Off Switch
Task Lamp
