GE MEDICAL SYSTEMS
DIRECTION 2380207, REVISION 7 LOGIQ™ 5 PRO SERVICE MANUAL
8 - 16 Section 8-4 - Keyboard Block
Section 8-4
Keyboard Block
8-4-1 KeyBoard Assy (FRU No. 200)
Purpose: This is a description on how to remove and replace the Keyboard Assy.
8-4-1-1 Tools
• Common pillips screwdrivers.
8-4-1-2 Needed Manpower
• 1person, 15 minutes + travel
8-4-1-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 4.
8-4-1-4 Removal Procedure
1.) Remove the Probe Holder (FRU No.202). Refer to section 8-4-3 on page 21.
2.) Unscrew two screws (1-2) from the upper side of the keyboard. Refer to Figure 8-17.
3.) Unscrew three screws (3-5) from the bottom of the keyboard. Refer to Figure 8-18.

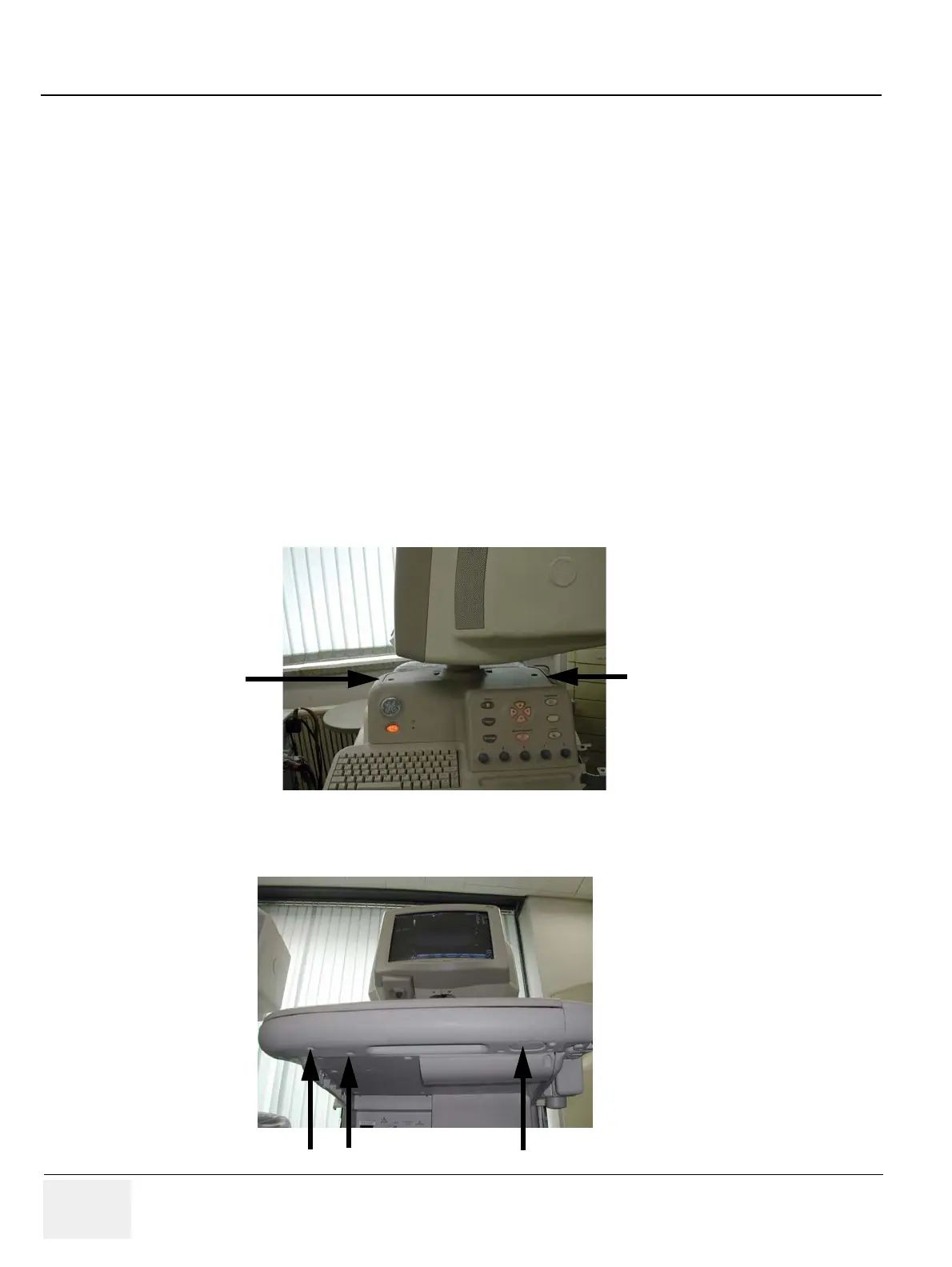

Figure 8-17 Unscrew two screws on the shoulder
Figure 8-18 Unscrew 3 screws from the bottom
1
2
3
4
5
To Next Page
