8-5-10 OP Rear Cover (FRU No. 309)
Purpose: This is a description on how to remove and replace the OP Rear Cover.
8-5-10-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-5-10-2 Needed Manpower
• 1person, 15 minutes + travel
8-5-10-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-2-2 on
page 5.
8-5-10-4 Removal Procedure
1.) Unscrew two screws (1-2).
NOTE: A coin can be used for a screwdriver to unscrew.
2.) Remove OP Rear Cover. Refer to Figure 8-57.

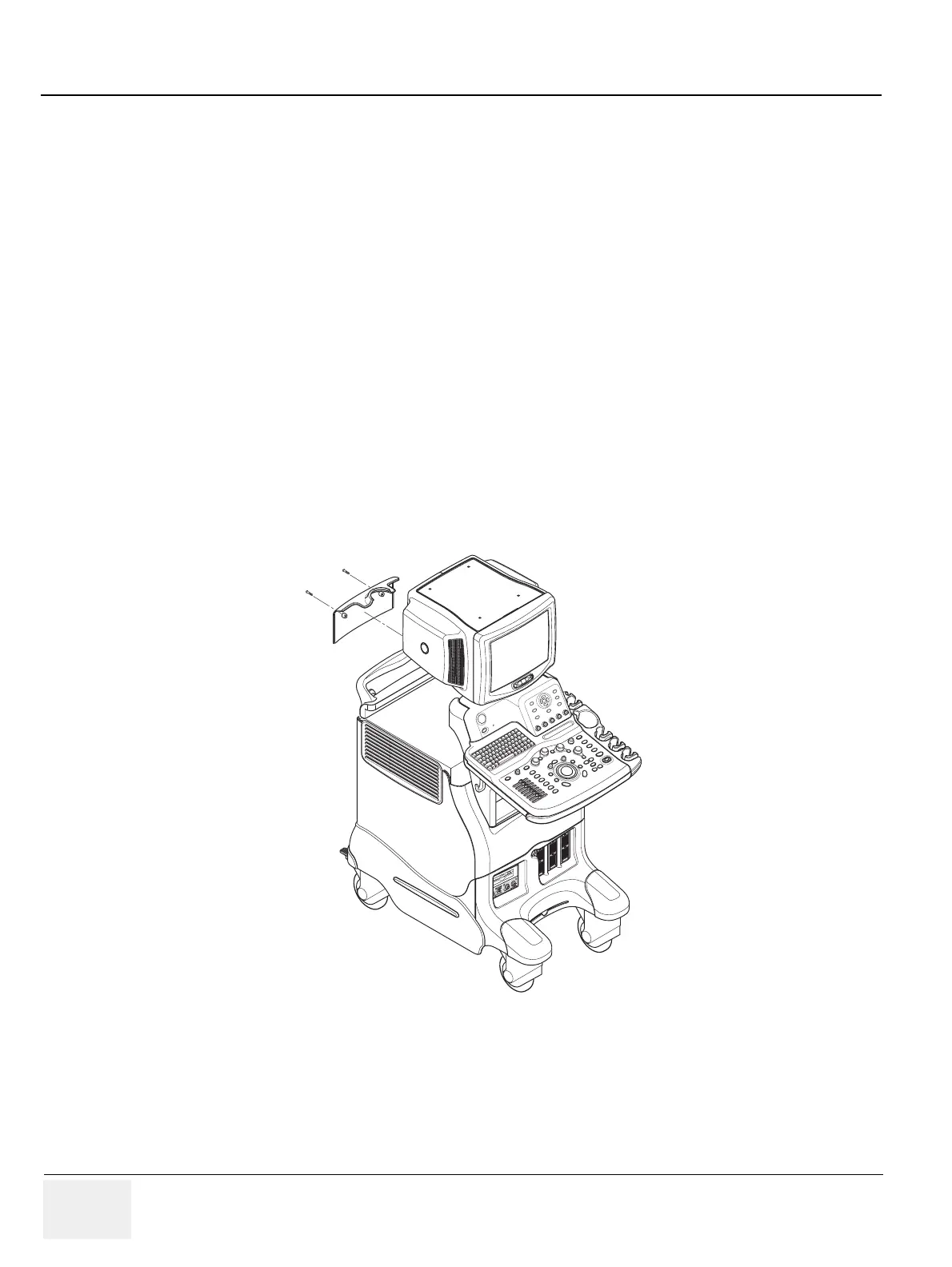

Figure 8-57 Removing OP Rear Cover
1
2
To Next Page
