Chapter 4 Functional Checks 4 - 7
4-3-3-3 Monitor Display

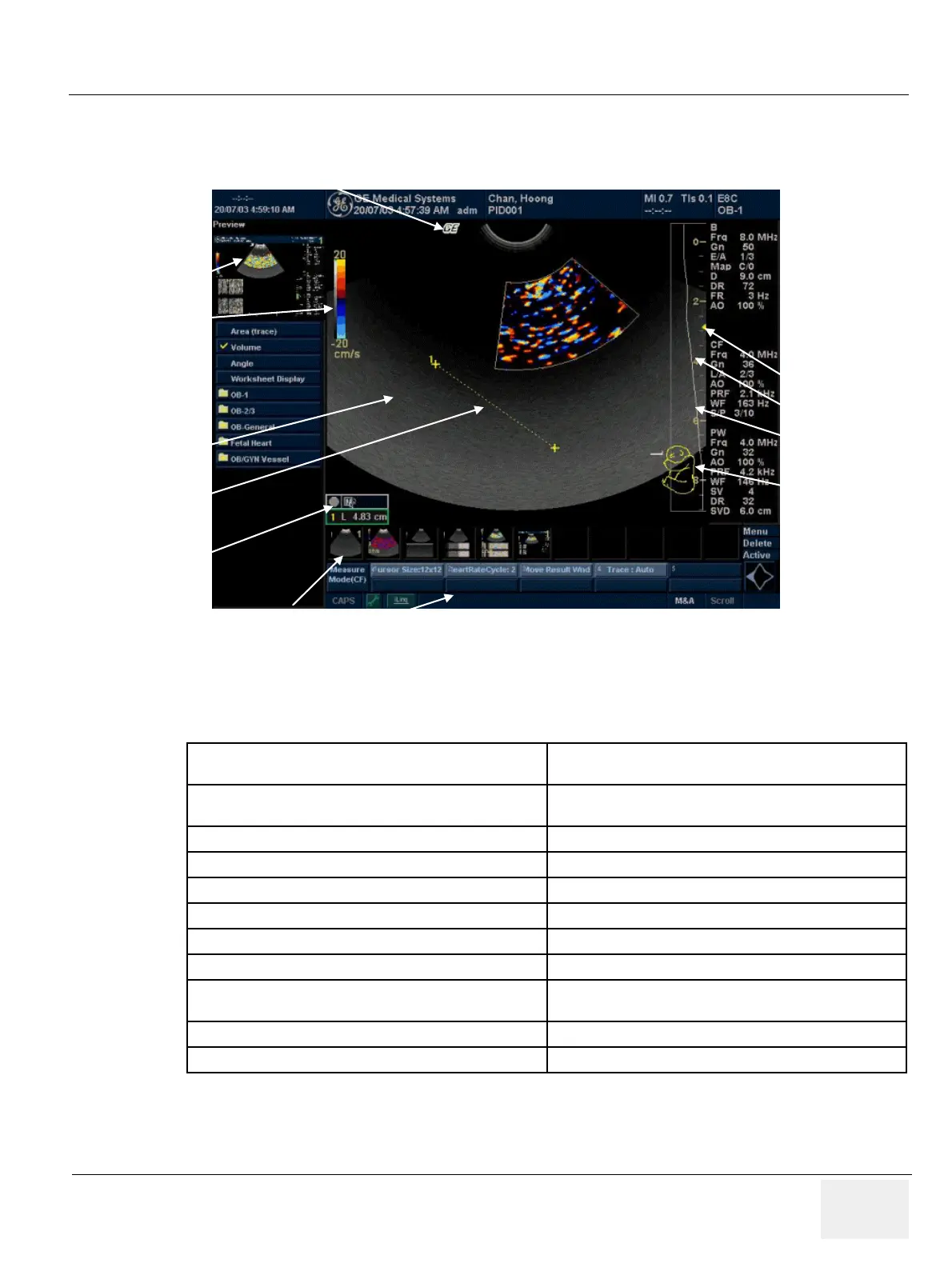

Figure 4-29 Monitor Display Tour
Table 4-16 Monitor Display Features
1. Institution/Hospital Name, Date, Time, Operator
Identification
2. Probe Identifier, Exam Study
3. Patient Name, Patient Identification 4. GE Symbol : Probe Orientation Marker. Coincides with a
probe orientation marking on the probe.
5. Image Preview 6. Gray/Color Bar
7. Cine Gauge 8. Measurement selection Menu
9. Image 10. Measurement
11. Result window 12. Imaging Paramenters by mode
13. Power Output Readout, system status 14. Focal Zone
15. Depth Scale 16. Body Pattern
17. TGC 18. Image Management Menu : Menu, Delete, and Image
Manager
19. Image Palette 20. System Messages Display
21. Trackball Fucntionality Status 22.
1234
5
6
7
8
9
10
11
19 20 21
18
17
16
15
14
13
12
1234
5
6
7
8
9
10
11
19 20 21
18
17
16
15
14
13
12
