GE MEDICAL SYSTEMS
DIRECTION 2380207, REVISION 7 LOGIQ™ 5 PRO SERVICE MANUAL
4 - 4 Section 4-3 - General Procedure
4-3-1-1 Scanner Power On (cont’d)
5.) Press the ON/OFF
key at the front of the System once.
4-3-2 Power Off / Shutdown
NOTE: After turning off a system, wait at least ten seconds before turning it on again. The system may not be
able to boot if power is recycled too quickly.
4-3-2-1 Scanner shutdown
1.) Press the On/Off key at the front of the system once to display the SYSTEM - EXIT menu.
2.) Select Shutdown from the SYSTEM - EXIT menu.

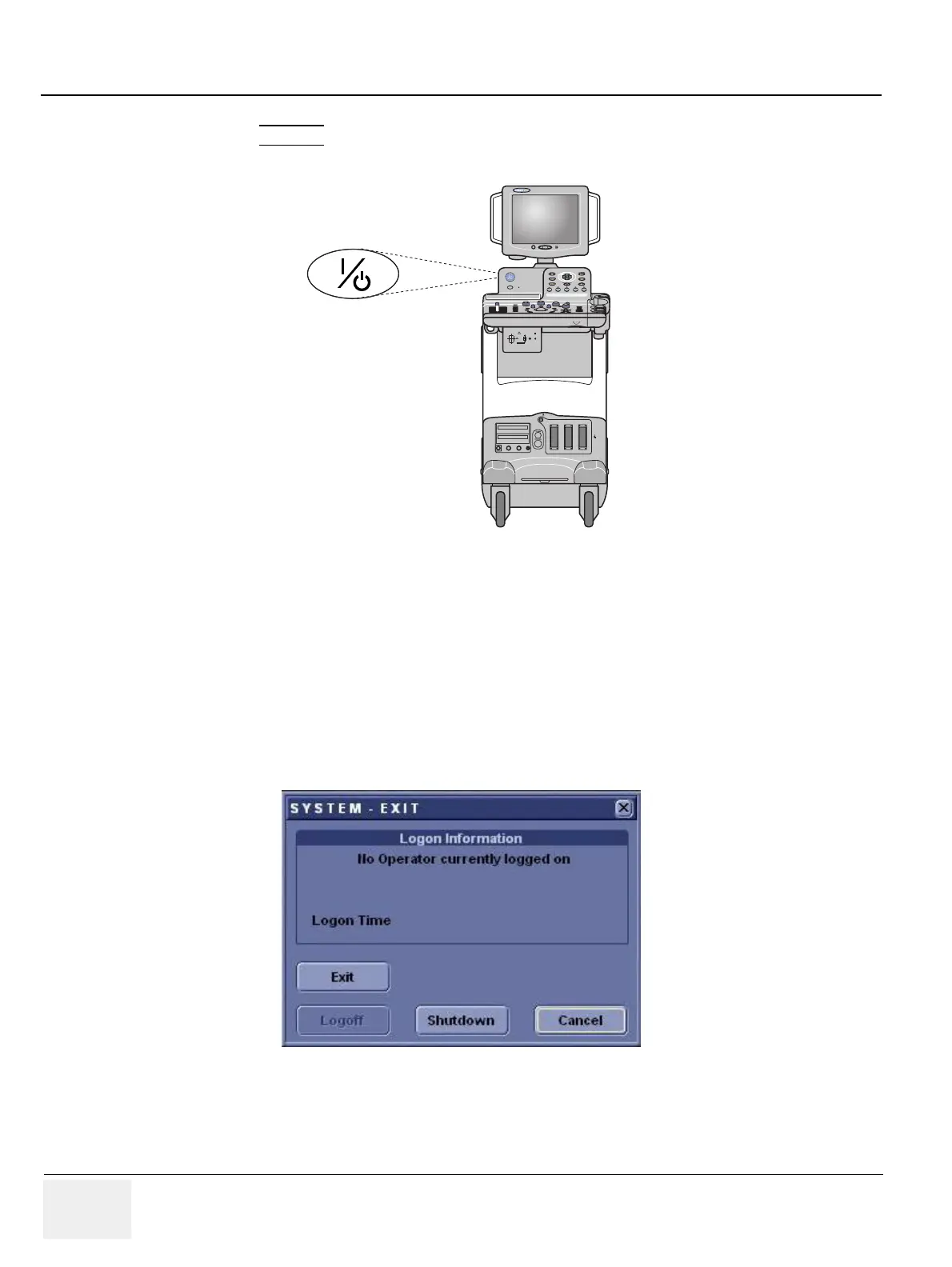

Figure 4-25 Power On/Off Standby Switch Location
Figure 4-26 System Exit Menu for System Shutdown
Power
B/W Printer
Composite
B/W
Serial
To Next Page
