8-4-11 Manu Key Assy (FRU No. 210)
Purpose: This is a description on how to remove and replace Manu key panel Assy.
8-4-11-1 Tools
• Common pillips screwdrivers.
8-4-11-2 Needed Manpower
• 1person, 10 minutes + travel
8-4-11-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 4.
• Keyboard Assy should be removed before proceed. For more information, refer to section 8-4-1 on
page 16.
8-4-11-4 Removal Procedure
1.) Unscrew 12screws (1-12) from the manu key prefix bracket to remove it. Refer to Figure 8-39.

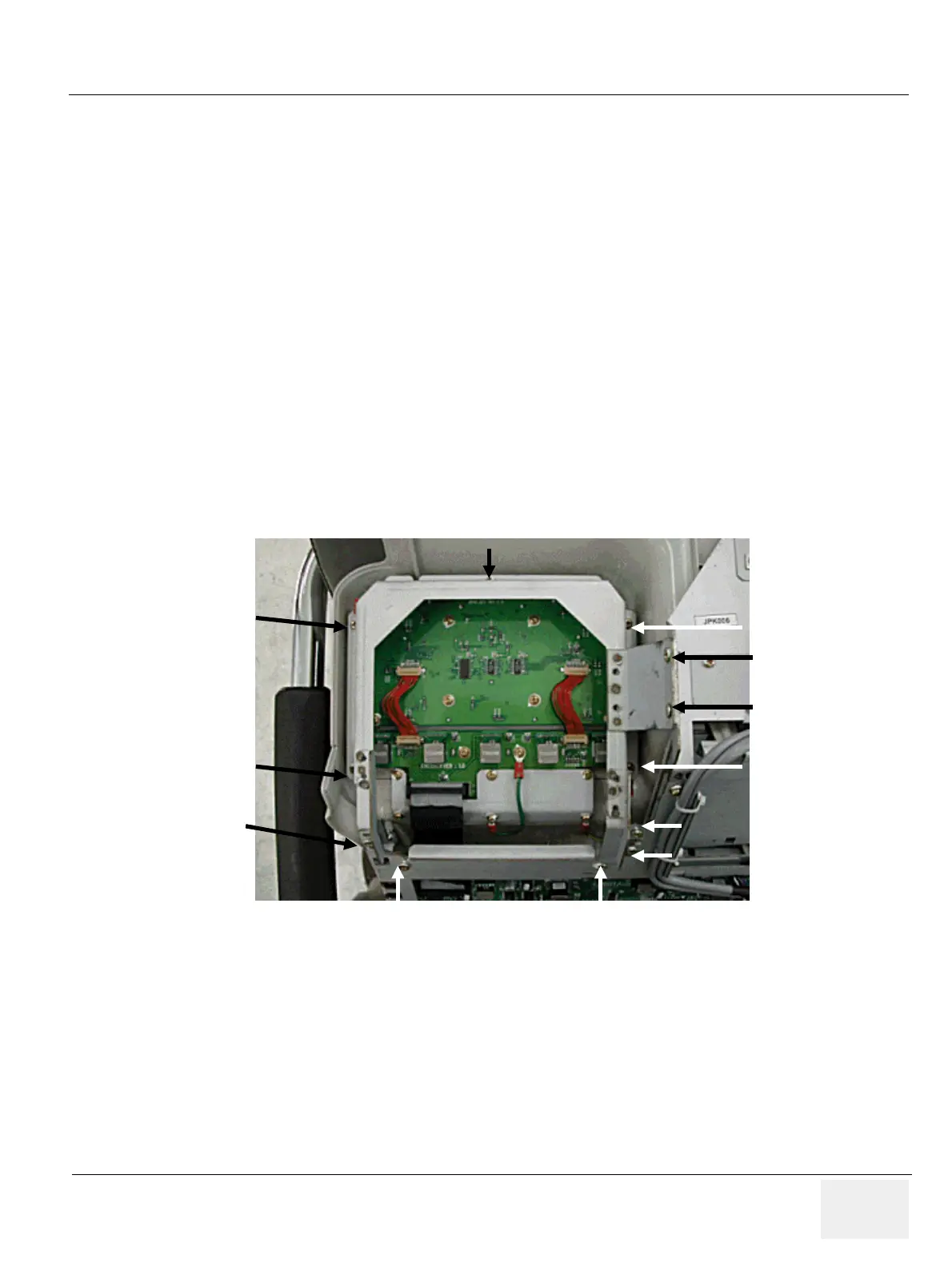

Figure 8-39 Unscrew 12 screws from the Menu key brkt
1 2
3
4
5
6
7
8
9
10
11
12
1 2
3
4
5
6
7
8
9
10
11
12
