GE MEDICAL SYSTEMS
DIRECTION 2380207, REVISION 7 LOGIQ™ 5 PRO SERVICE MANUAL
8 - 22 Section 8-4 - Keyboard Block
8-4-4 ECG Cable Hook (FRU No. 203)
Purpose: This is a description on how to remove and replace the TGC Cable Holder.
8-4-4-1 Tools
• Common pillips screwdrivers
8-4-4-2 Needed Manpower
• 1persons, 3 minutes + travel
8-4-4-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 4.
8-4-4-4 Removal Procedure
1.) Turn OFF the system.
2.) Unscrew two(1-2) screws from the bottom of the keyboard. Refer to Figure 8-23.

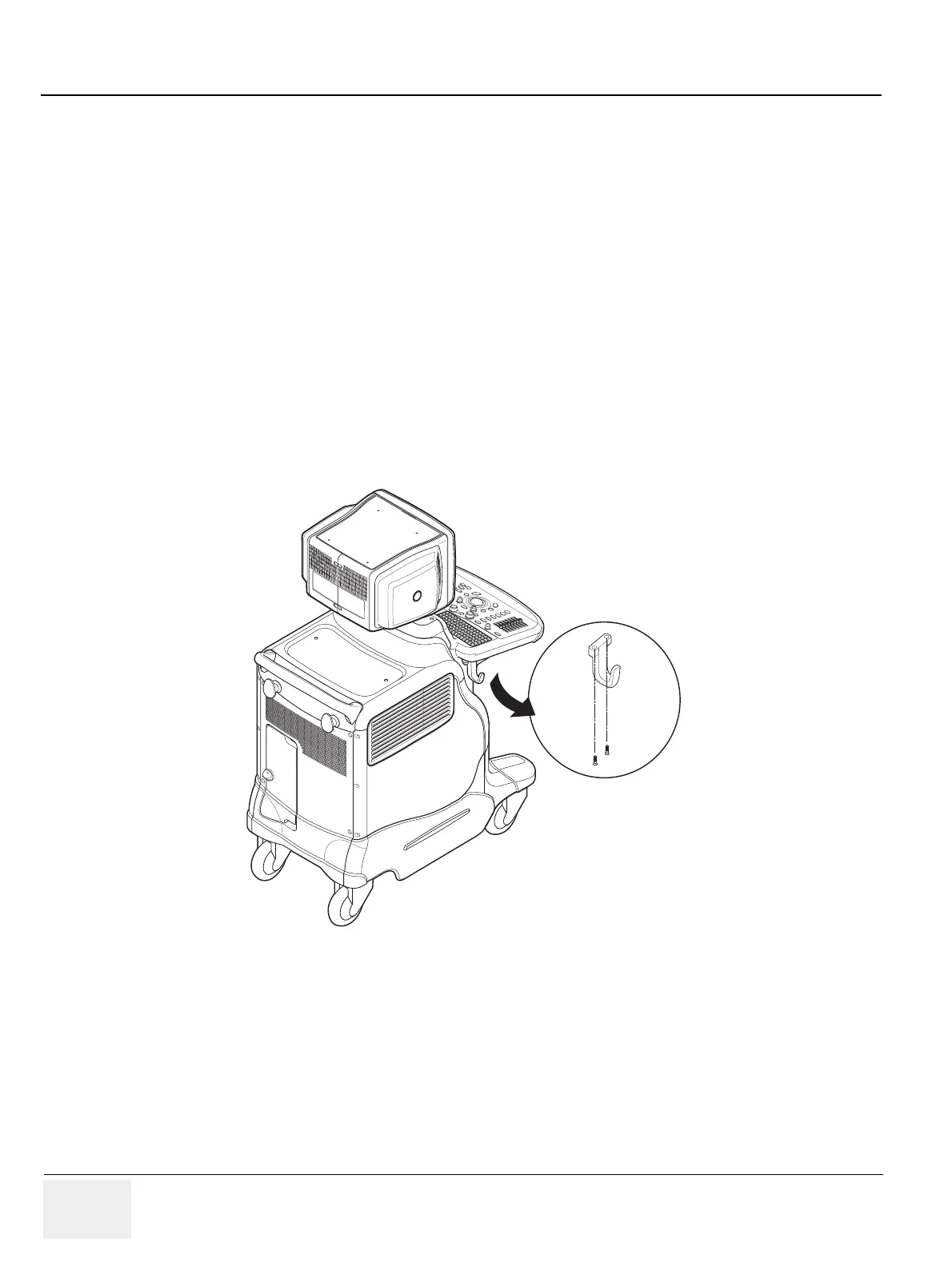

Figure 8-23 Removing ECG Cable Hook
1
2
