Product overview
The D20E Ethernet I/O Module set is comprised of the:
• D20E-C module; 16 digital inputs, 8 control outputs and 16 analog inputs; see Figure 1
• D20E-S module; 64 digital (status) inputs; see Figure 2
• D20E-K module; 32 control outputs; see Figure 3
• D20E-A module; 32 analog inputs; see Figure 4

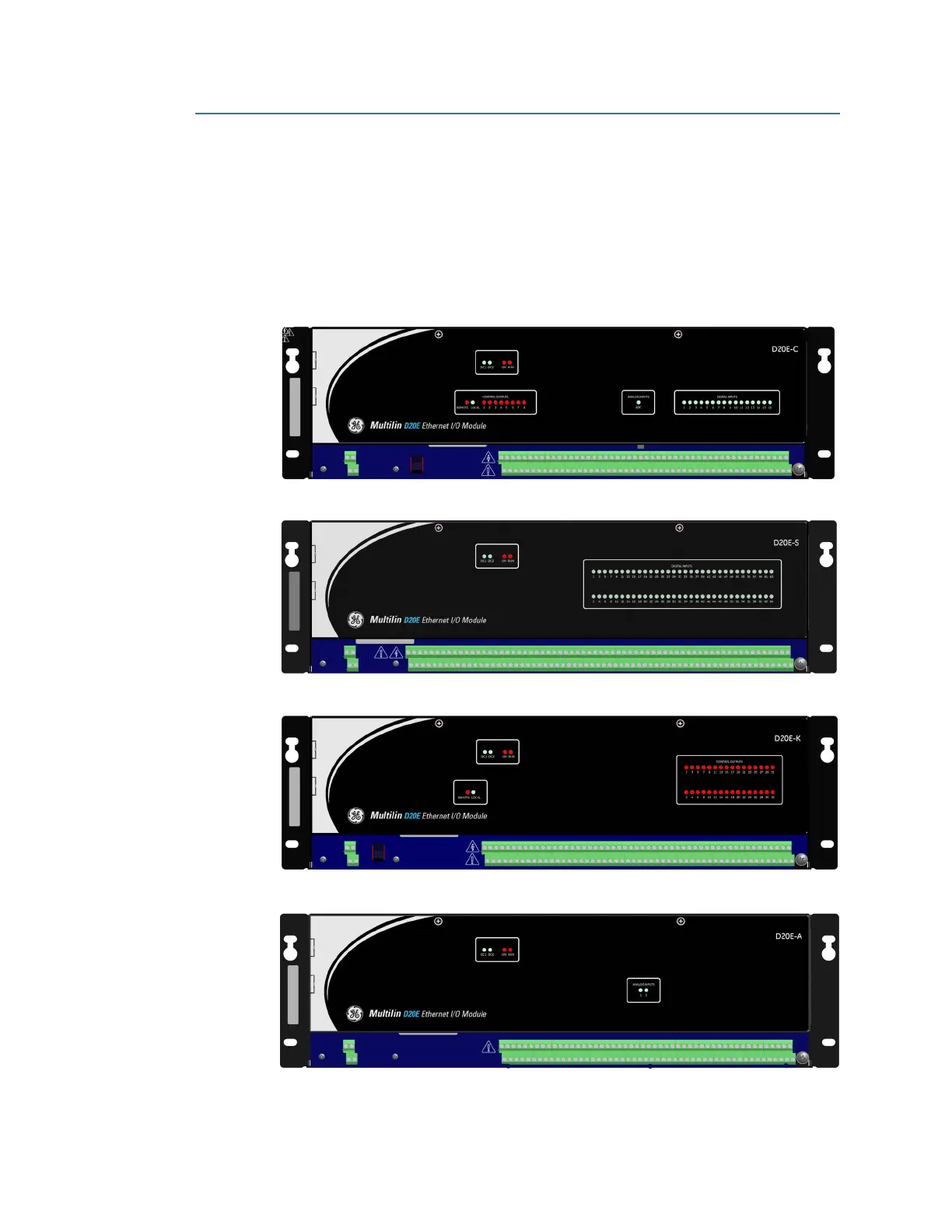

Figure 1: D20E-C (combination inputs/outputs) module front panel
Figure 2: D20E-S (status digital inputs) module front panel
Figure 3: D20E-K (control digital outputs) module front panel
Figure 4: D20E-A (analog inputs) module front panel
