2 – Install Power

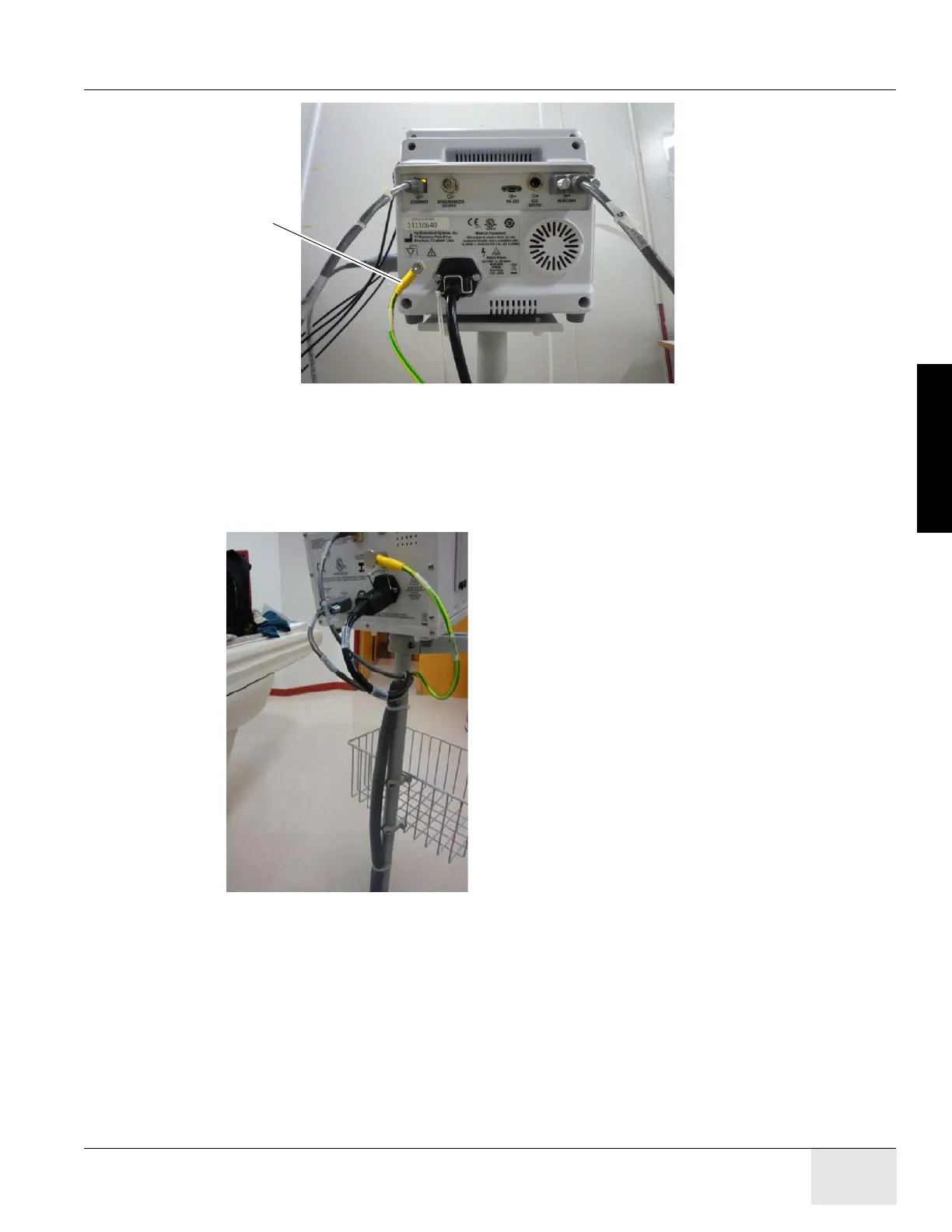

Figure 2-23 Connections on Rear of Cardiac Monitor (IVY7800)
8.) Connect the power cord, ground wire, HD15 and CAT5 to the monitor panel.(See Figure 2-22).
9.) The cardiac monitor receives power from the gantry.
10.) Strain relief the cables to the monitor stand, and to the gantry base covers using tie-wraps.
(See Figure 2-24).
Figure 2-24 Cables Strain Relieved to Stand
