GE COMPANY
DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL
Appendix A – Gantry Cover Removal and Dolly Setup Page 185
A - Covers
5.) Pull up safety pin small knob on the bore cover top bracket and rotate 1/4 turn to keep the
safety pin disengaged.

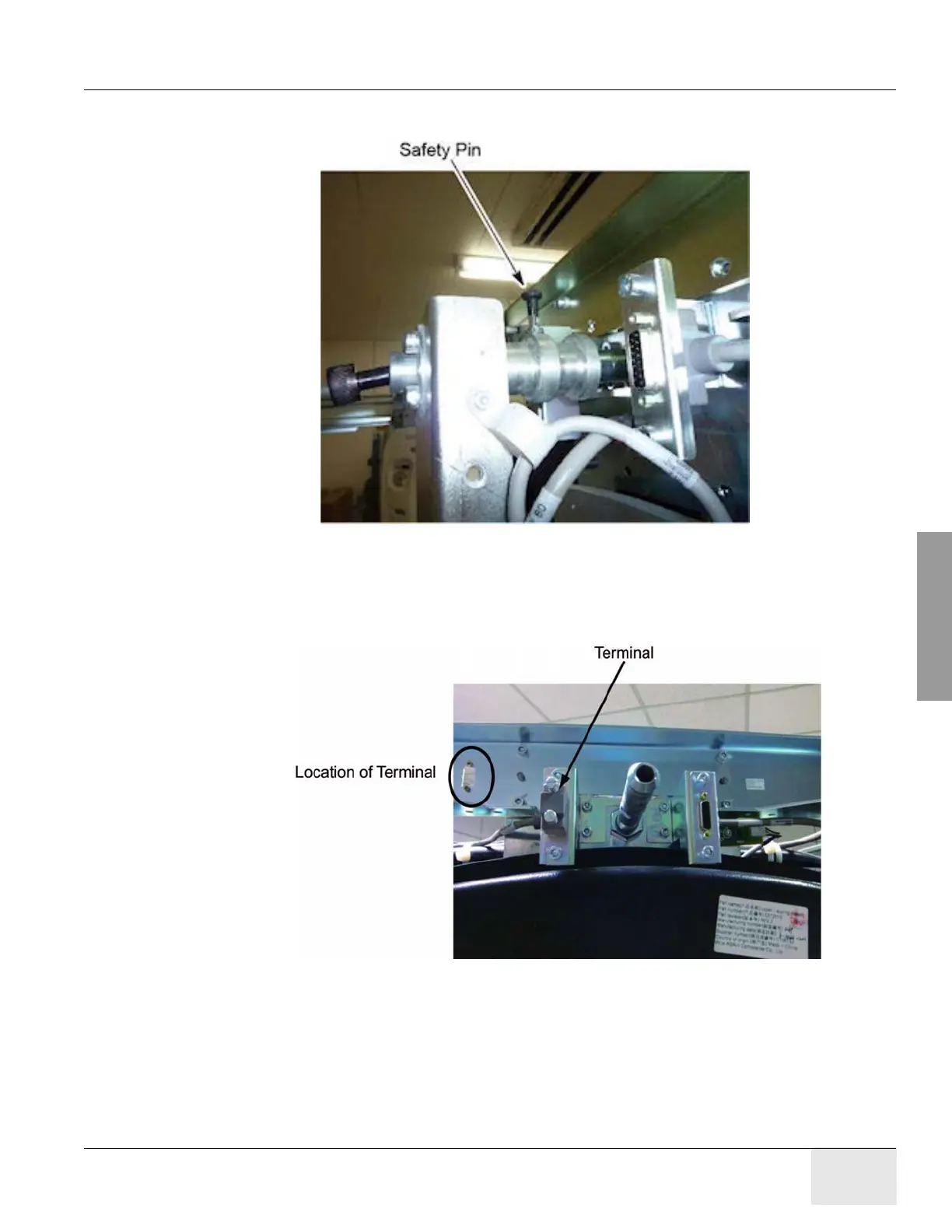

Figure A-30 Safety Pin
6.) With two persons, pull out the bore cover from the gantry stationary brackets and place it on
the floor.
NOTICE Disable UIF communication after gantry bore cover removal, So if need UIF continuation,
please insert the terminal to the Mic/T-SW I/F connector.
Figure A-31 Location of Terminal
To Next Page
