GE COMPANY
DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL
Page 202 Appendix D - Remote Monitor Option Console Wiring
d.) Add BNC terminators to unused outputs.

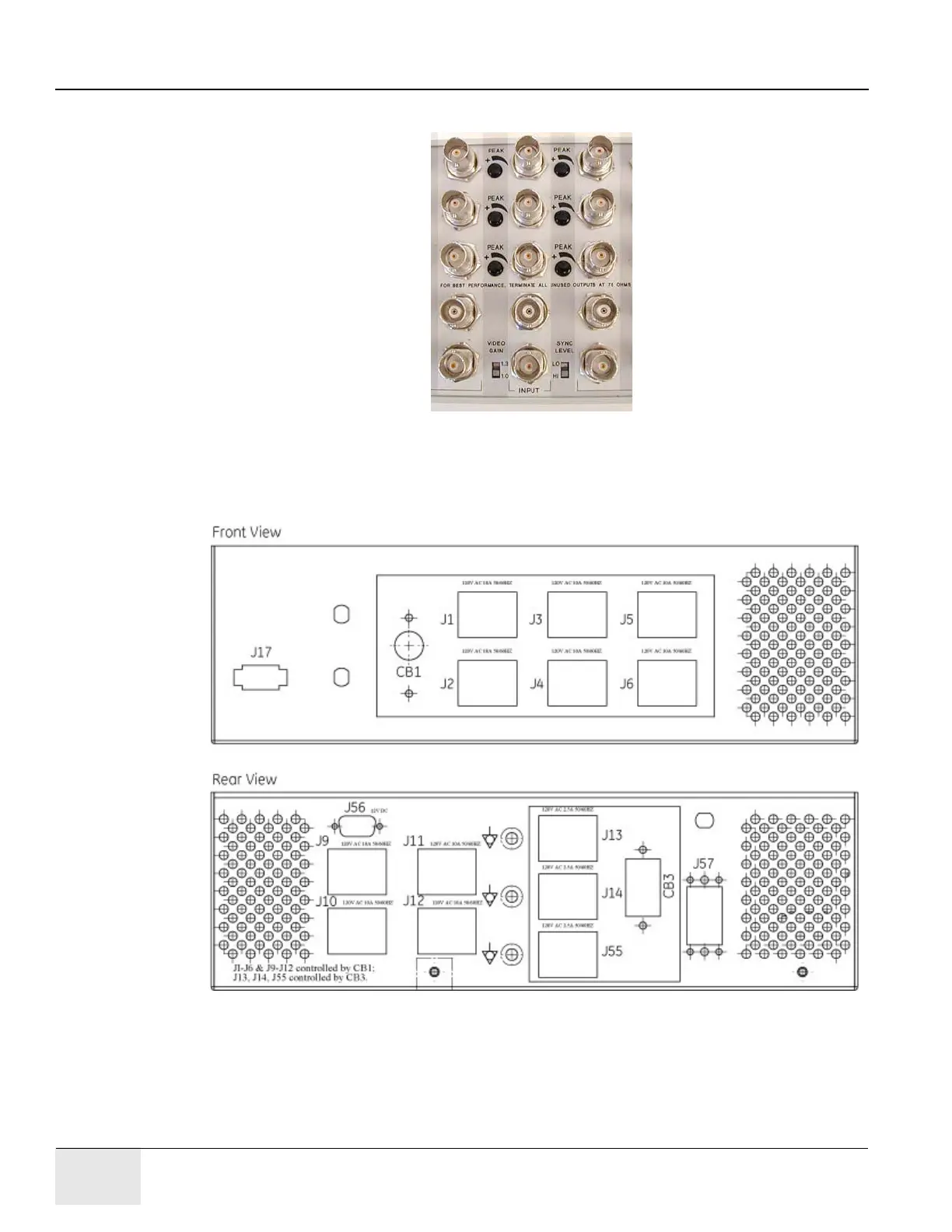

Figure D-8 Splitter connections
7.) Set the Video Gain Level to 1.0 and the Sync Level to HI.
8.) Attach the AC power cable from the splitter to the J1 of the console AC Box. See Figure D-9.
Connect the remote power cord to J12.
Figure D-9 AC Box J1 and J12
9.) Connect one end of the ground wire with the ring terminal to the ground stud on the back of
the console.
