Page 72 Section 11.0 - Drill the Anchor Holes
8.) Recheck the depth of all holes by inserting an anchor backward into the hole. A ½” (13mm) or
less should be showing. Re-drill if needed.
9.) When finished drilling and clearing the anchor holes, vacuum the debris from the inside of each
of the holes and from the surrounding (floor) area.

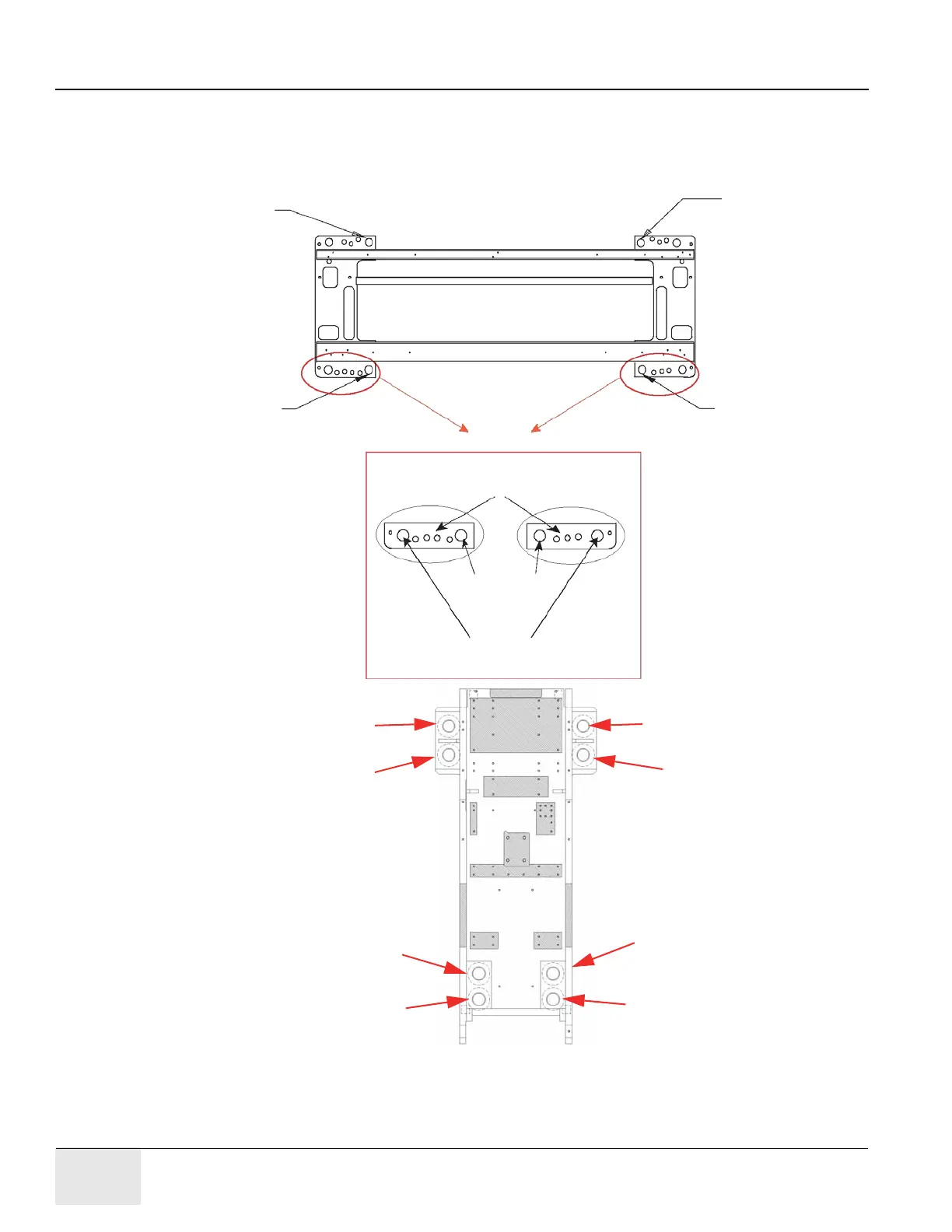

Figure 1-51 Anchor Locations
See insert
below
Redundant Anchor
Location
Redundant Anchor
Location
Redundant Anchor
Locations
Redundant
Anchor
Locations
Not used
Redundant Anchor
Locations
Primary Anchor
Locations
Proper Anchor Position
Alternative Anchor Position
Alternative Anchor Position
Proper Anchor Position
Alternative Anchor Position
Proper Anchor Position
Alternative Anchor Position
Proper Anchor Position
