GE Voluson P8 BT16 - 5-3-1 T-DPI - Probe Interface board

GE DRAFT VOLUSON™ P8 / VOLUSON™ P6
DIRECTION 5723243, R
EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL
Chapter 5 - Components and Functions (Theory) 5-23
5-3-1 T-DPI - Probe Interface board
Switches the Probe Connectors (3 RS -Connectors) and recognizes Probes
• 3 RS-Probe Connectors
• Probe Select Relays
• Probe Recognition
For Block diagrams refer to:
- Figure 5-7: T-DPI - Blockdiagram

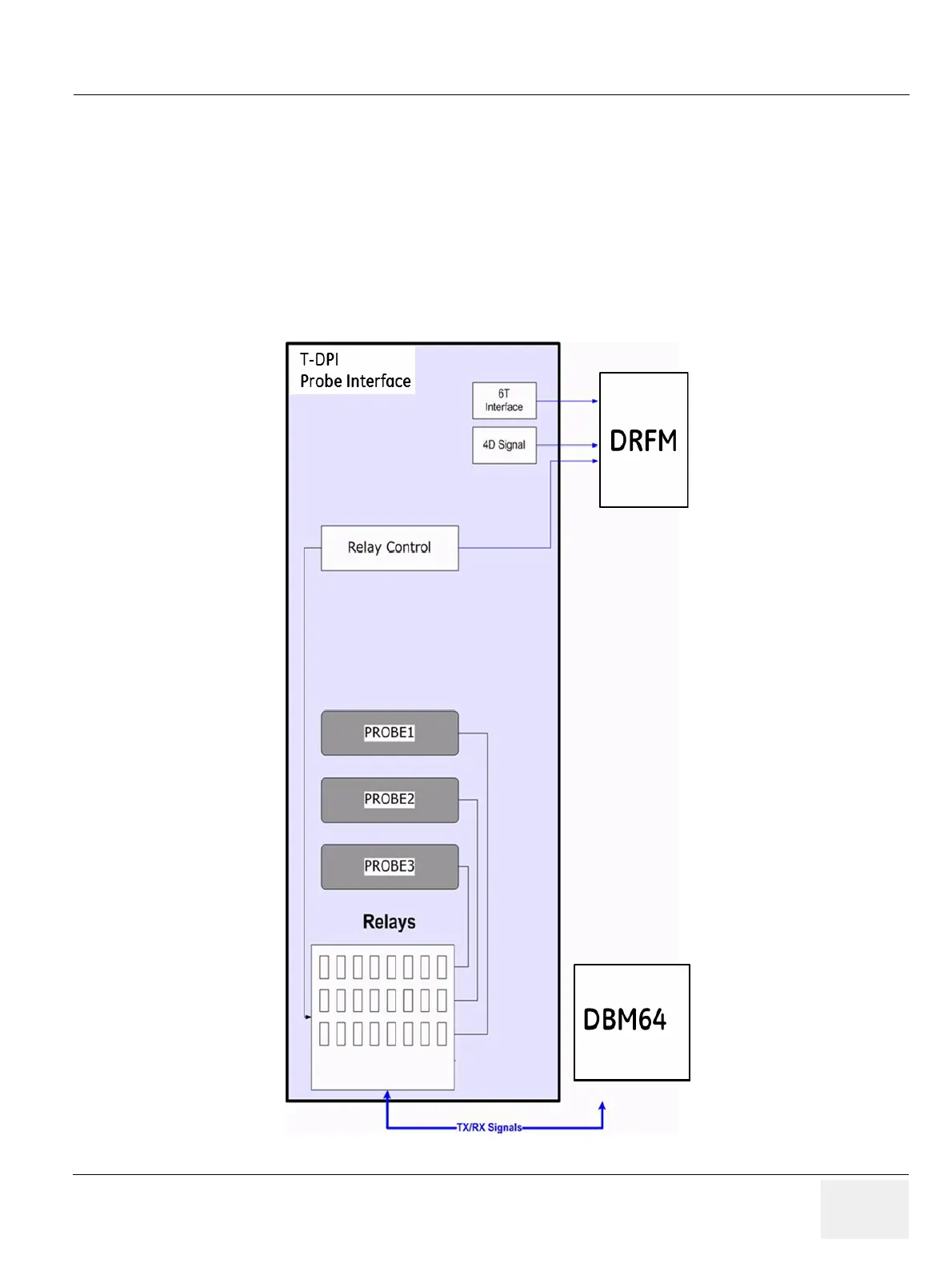

Figure 5-7 T-DPI - Blockdiagram
