8-100 Section 8-30 - Replacement of the Probe Holder(KIT)

Section 8-30

Replacement of the Probe Holder(KIT)

8-30-1 Manpower

One person, 1 minutes

8-30-2 Tools

None

8-30-3 Removal Procedure

1.) Remove 5 probe holders. Refer to the figure below.

8-30-4 Installation Procedure

1.) Install the new parts in the reverse order of removal.

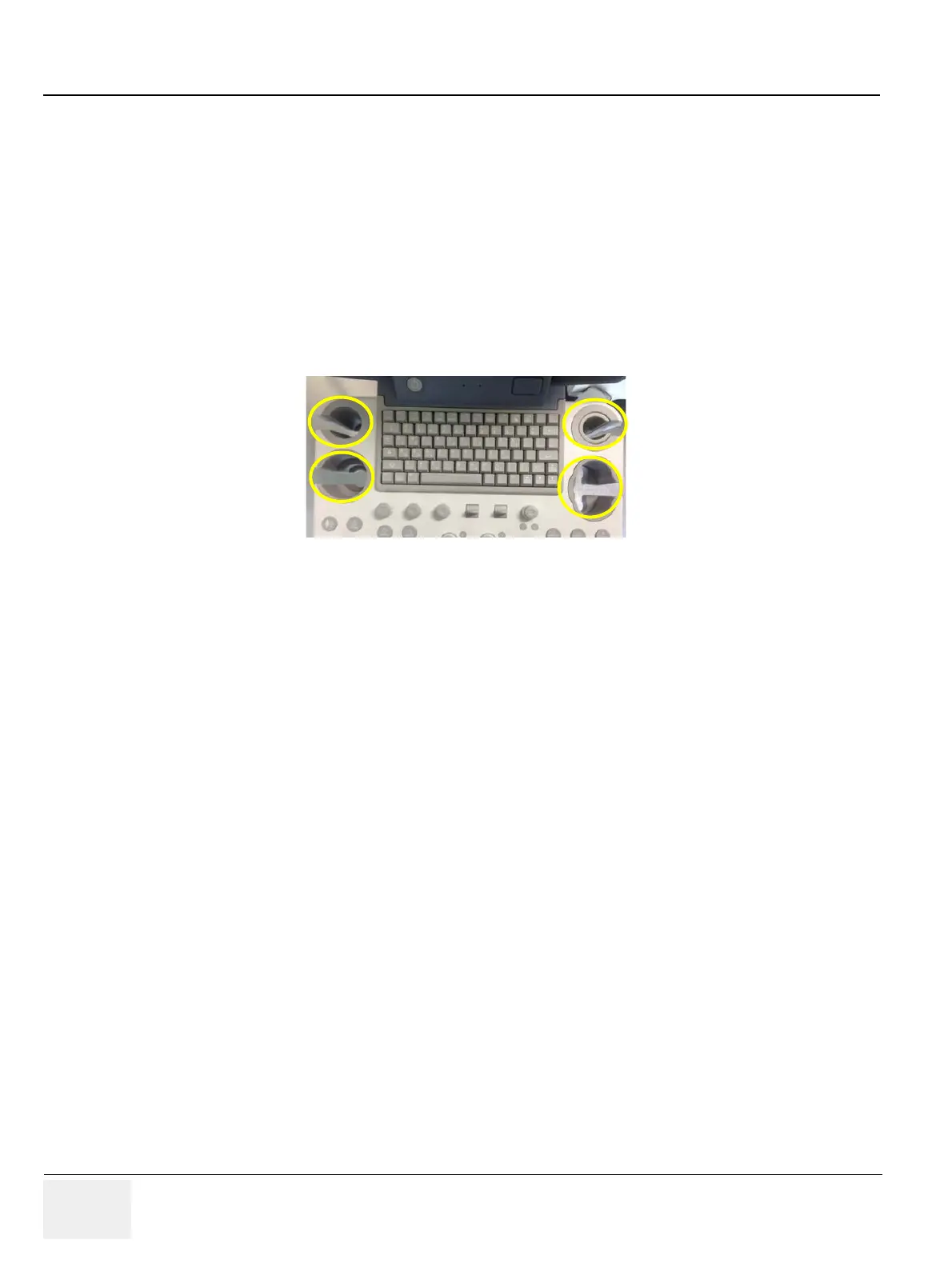

Figure 8-147 Removing the 5 PROBE HOLDERs
