GE Voluson P8 BT16 - Section 8-49 Replacement of the DVD

To Next Page

To Previous Page

GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-151

Section 8-49

Replacement of the DVD

8-49-1 Manpower

One person, 10 minutes

8-49-2 Tools

Philips screwdriver

8-49-3 Preparations

1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.

8-49-4 Removal Procedure

1.) Remove FRONT PRINTER BEZEL ASSY BT16. Refer to the below picture.

2.) Unplug two cables from the DVD.

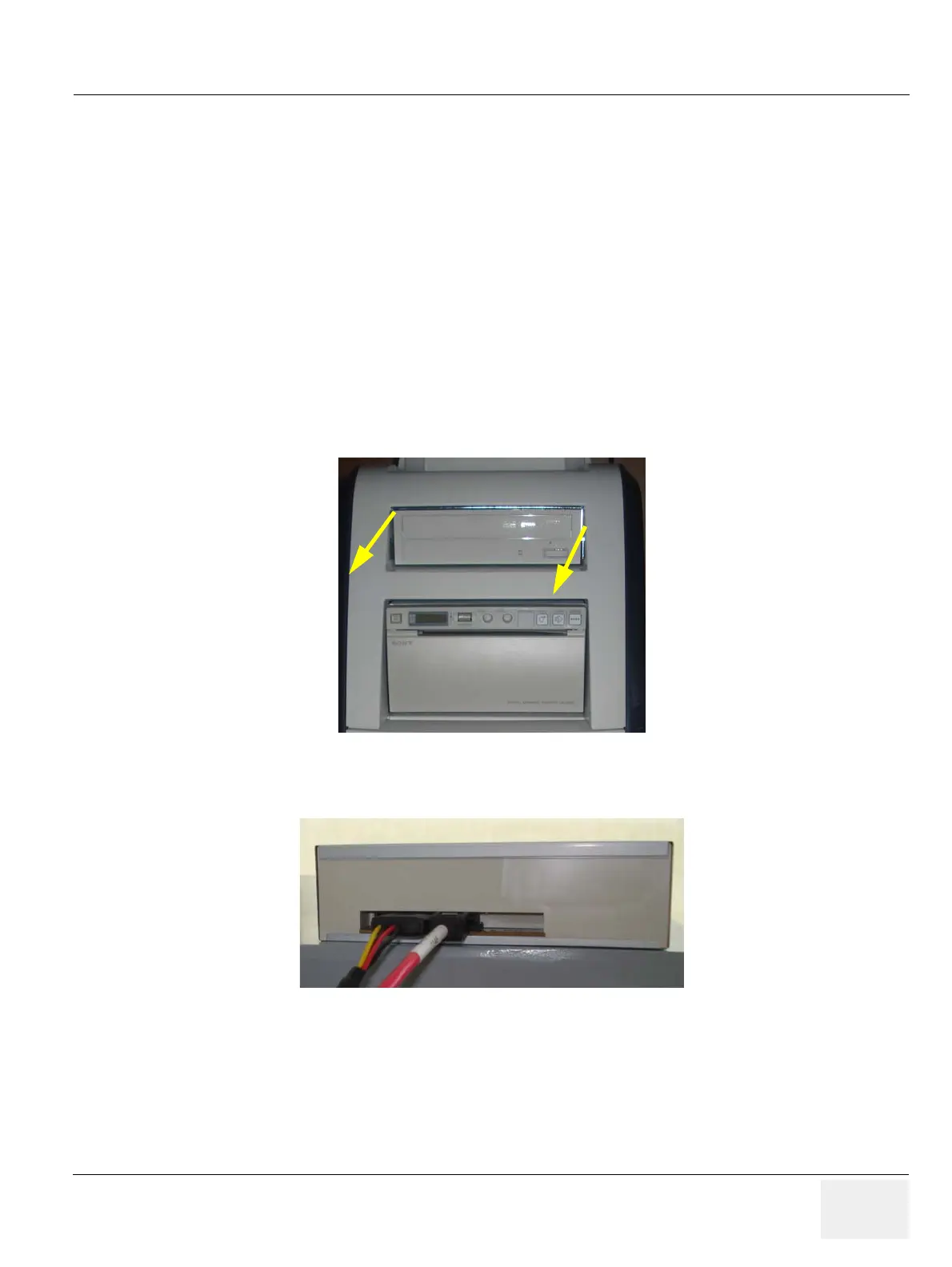

Figure 8-213 Removing FRONT PRINTER BEZEL ASSY BT16

Figure 8-214 Unpluging two cables
