GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

8-126 Section 8-39 - Replacement of the REAR HANDLE

5.) Unscrew 2 screws, and remove the REAR HANDLE. Refer to the figure below.

8-39-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

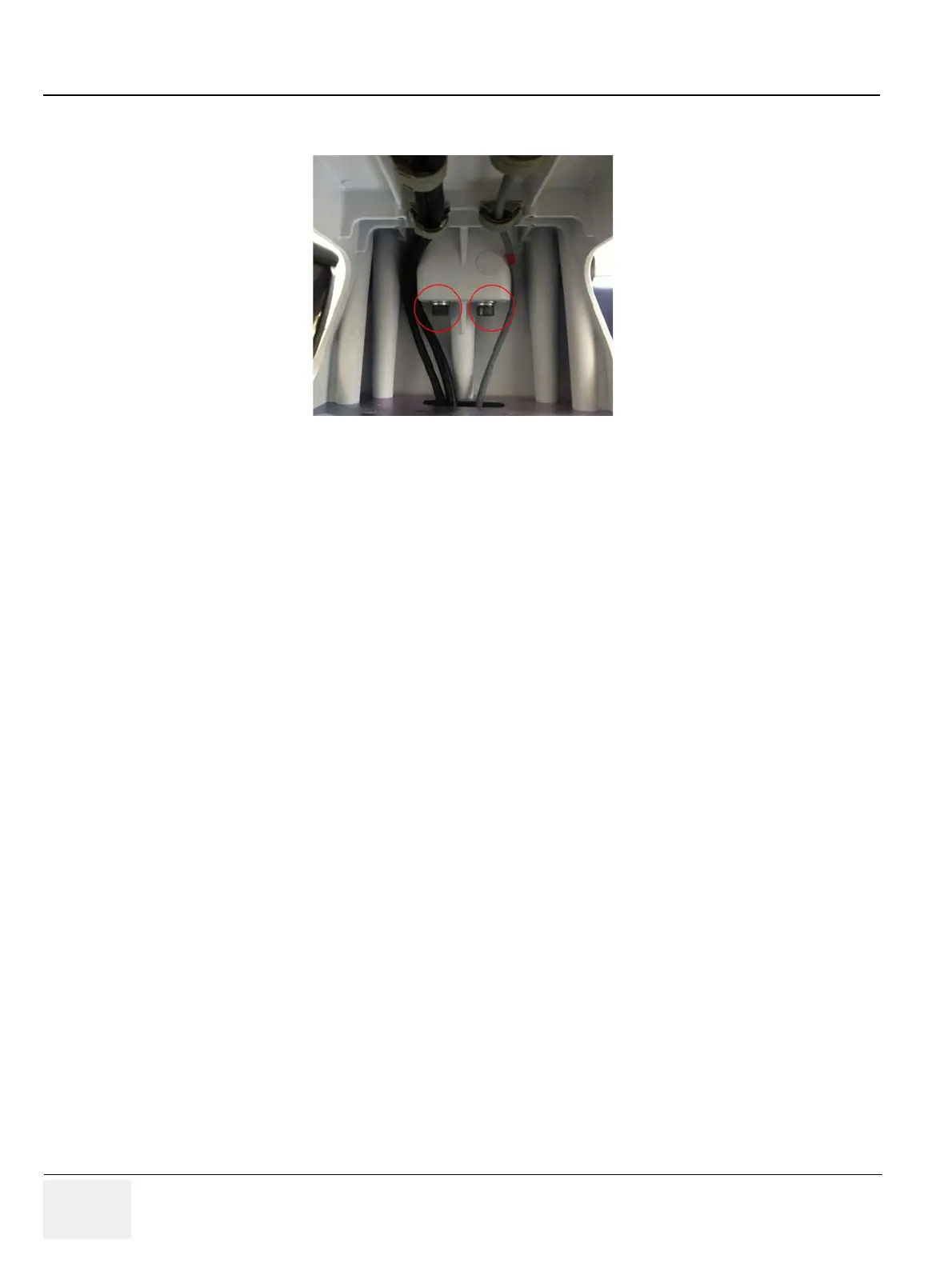

Figure 8-184 Removing the REAR HANDLE
