Chapter 8 - Replacement Procedures 8-71
7.) Unscrew LCD ARM STOPPER SCREW. Refer to figure below.
8.) Pull out the LCD ARM from the LCD ARM HOLDER
8-22-4 Installation Procedure
1.) Install the new parts in the reverse order of removal.
2.) Perform: FRU8-9: Replacement of the MONITOR STAND ARM - Functional Tests.

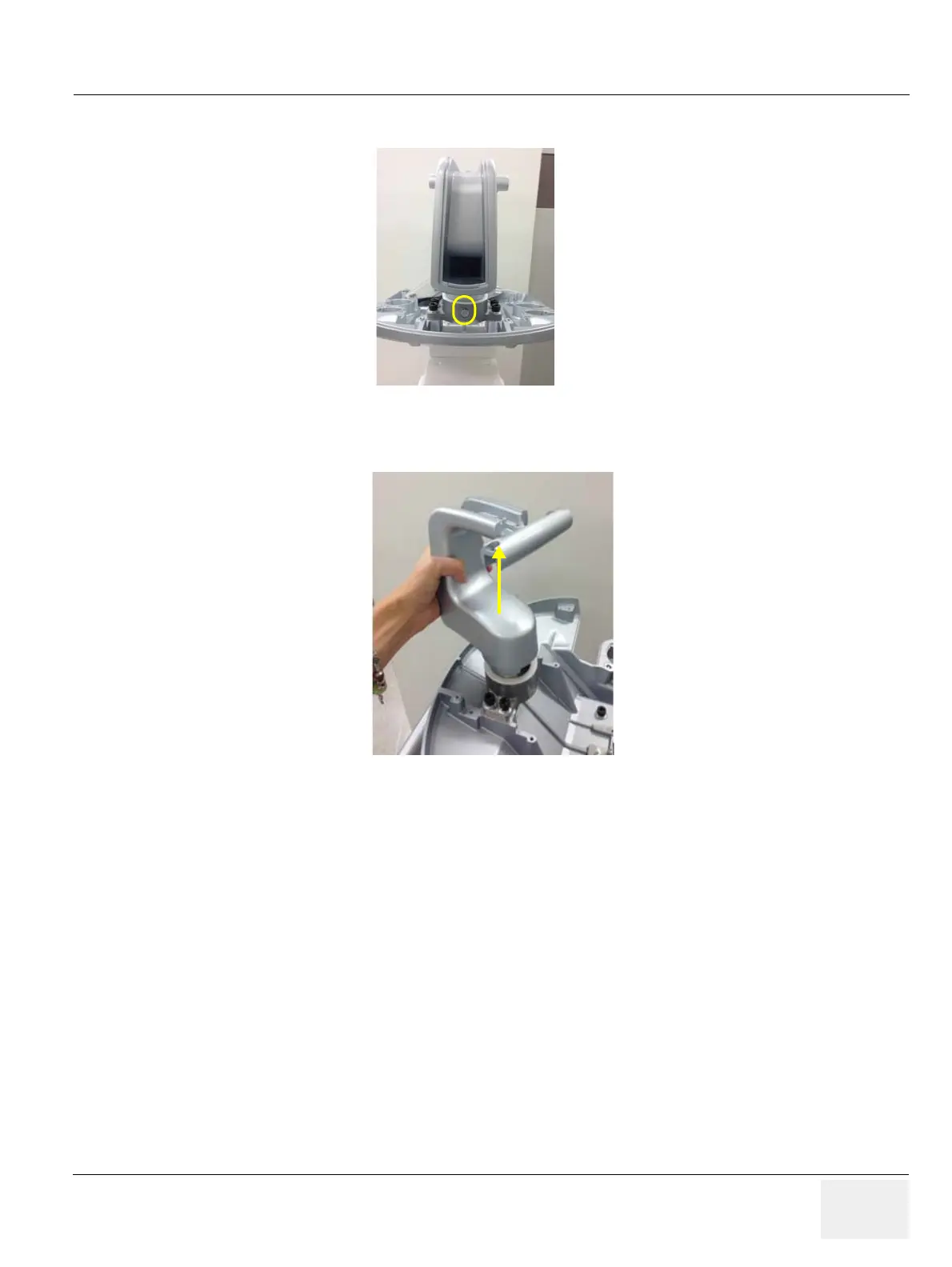

Figure 8-99 Unscrewing LCD ARM STOPPER SCREW
Figure 8-100 Pulling out the LCD ARM from the LCD ARM HOLDER
