GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

8-86 Section 8-24 - Replacement of ASSY Bumper Base Rubber

10.)Remove the Bumper Base Rubber. Refer to the figure below.

8-24-4 Installation Procedure

Install the new parts in the reverse order of removal procedure.

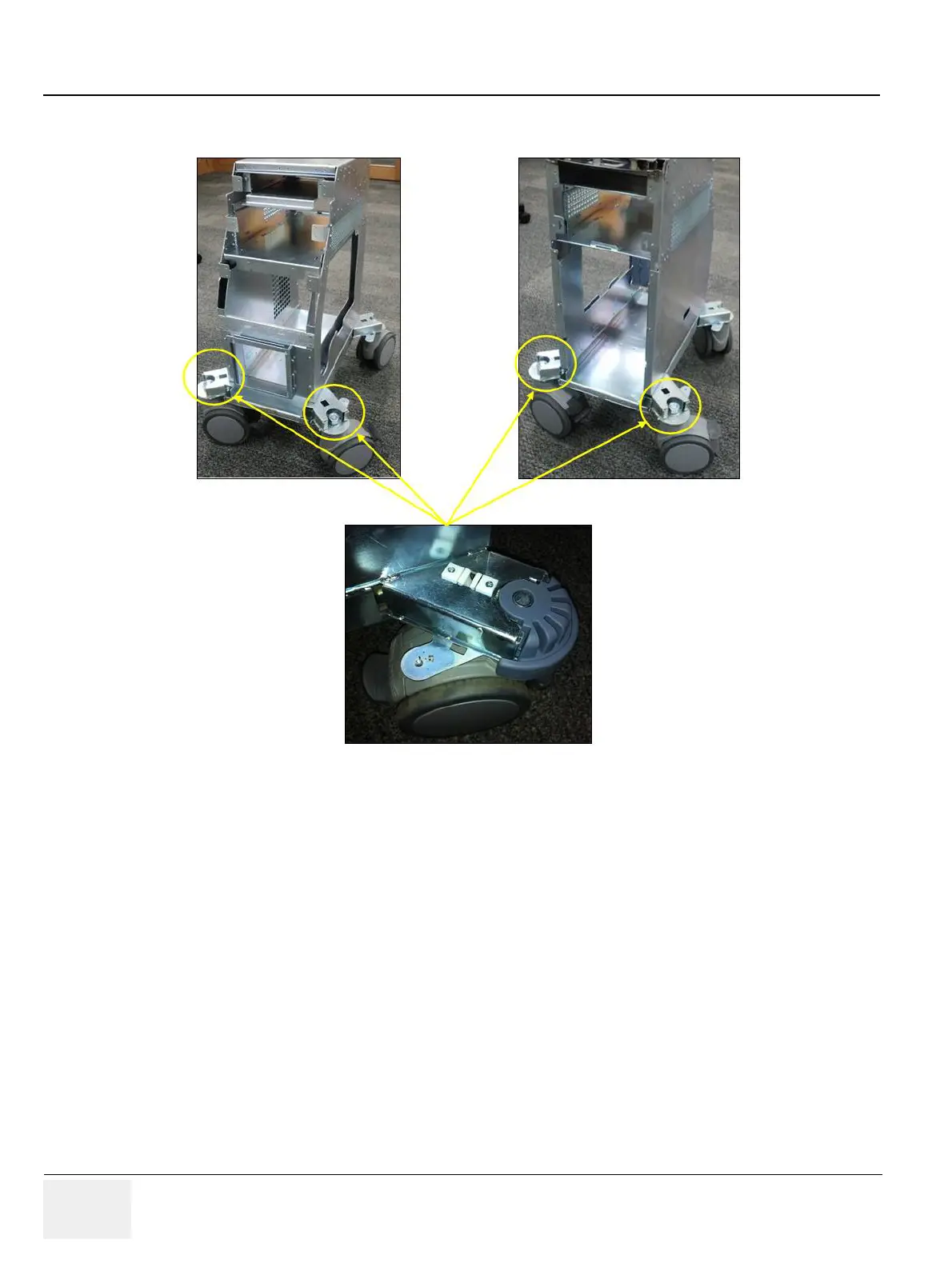

Figure 8-128 Removing the Bumper Base Rubber
