8-106 Section 8-33 - Replacement of the Trackball

Section 8-33

Replacement of the Trackball

8-33-1 Manpower

One person, 20 minutes

8-33-2 Tools

Philips Screwdriver

8-33-3 Removal procedure

1.) Unscrew 9 screws at the bottom of the keyboard body. Refer to the figures below.

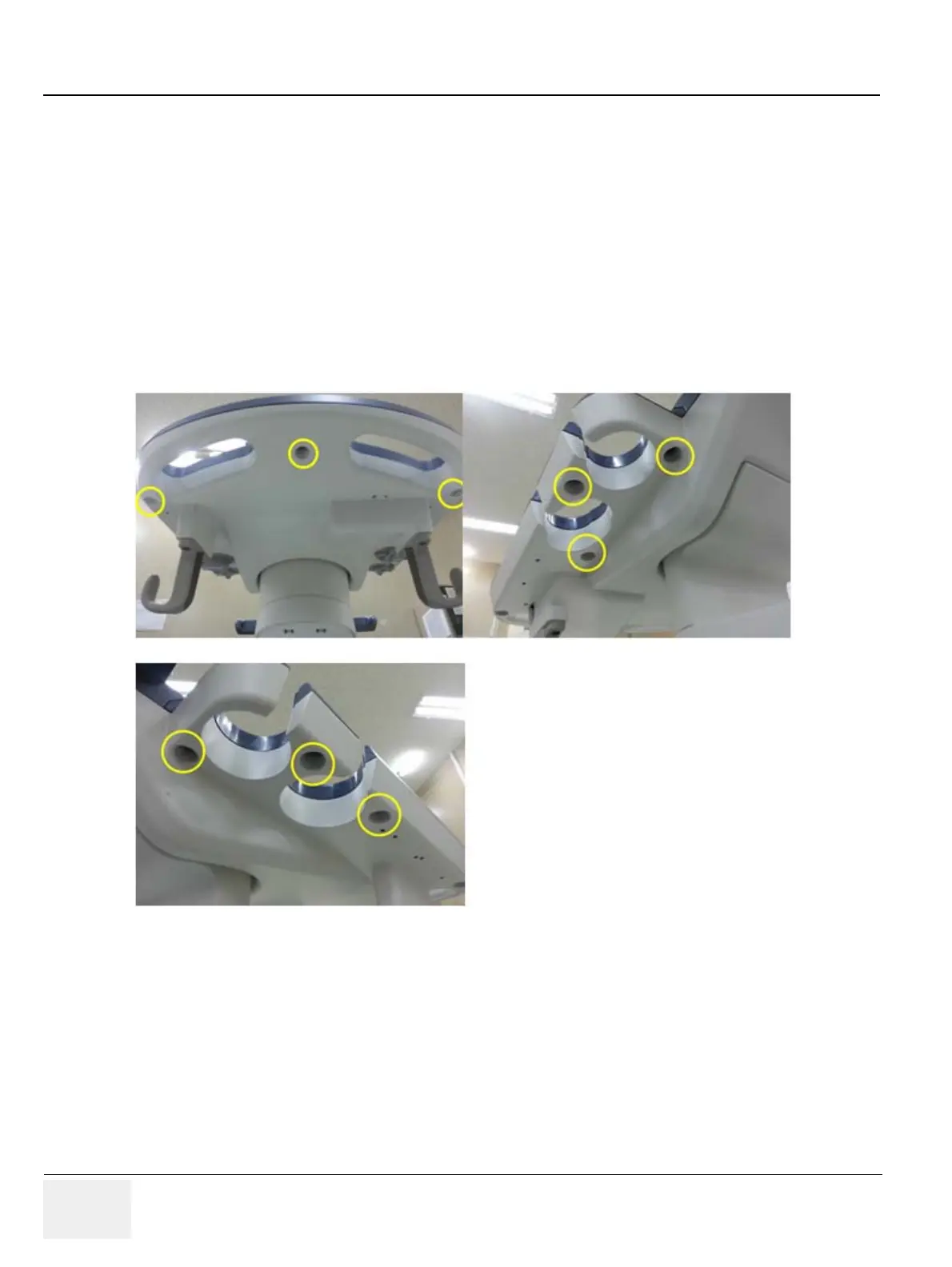

Figure 8-157 Unscrewing 9 screws
