GE Voluson P8 BT16 - Section 8-51 Replacement of AN KEY TOP

GE DRAFT VOLUSON™ P8 / VOLUSON™ P6
DIRECTION 5723243, R
EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-155
Section 8-51
Replacement of AN KEY TOP
8-51-1 Manpower
One person, 30 minutes
8-51-2 Tools
Flat head screw driver or Flat tool
8-51-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-51-4 Key Caps - Removal Procedure
1.) Remove the Key(should be changed) with Flat tool. Refer to the figure below.
2.) Assemble the Key. Refer to the figure below.
3.) Perform: FRU8-43: Replacement of AN KEY TOP - Functional Tests.

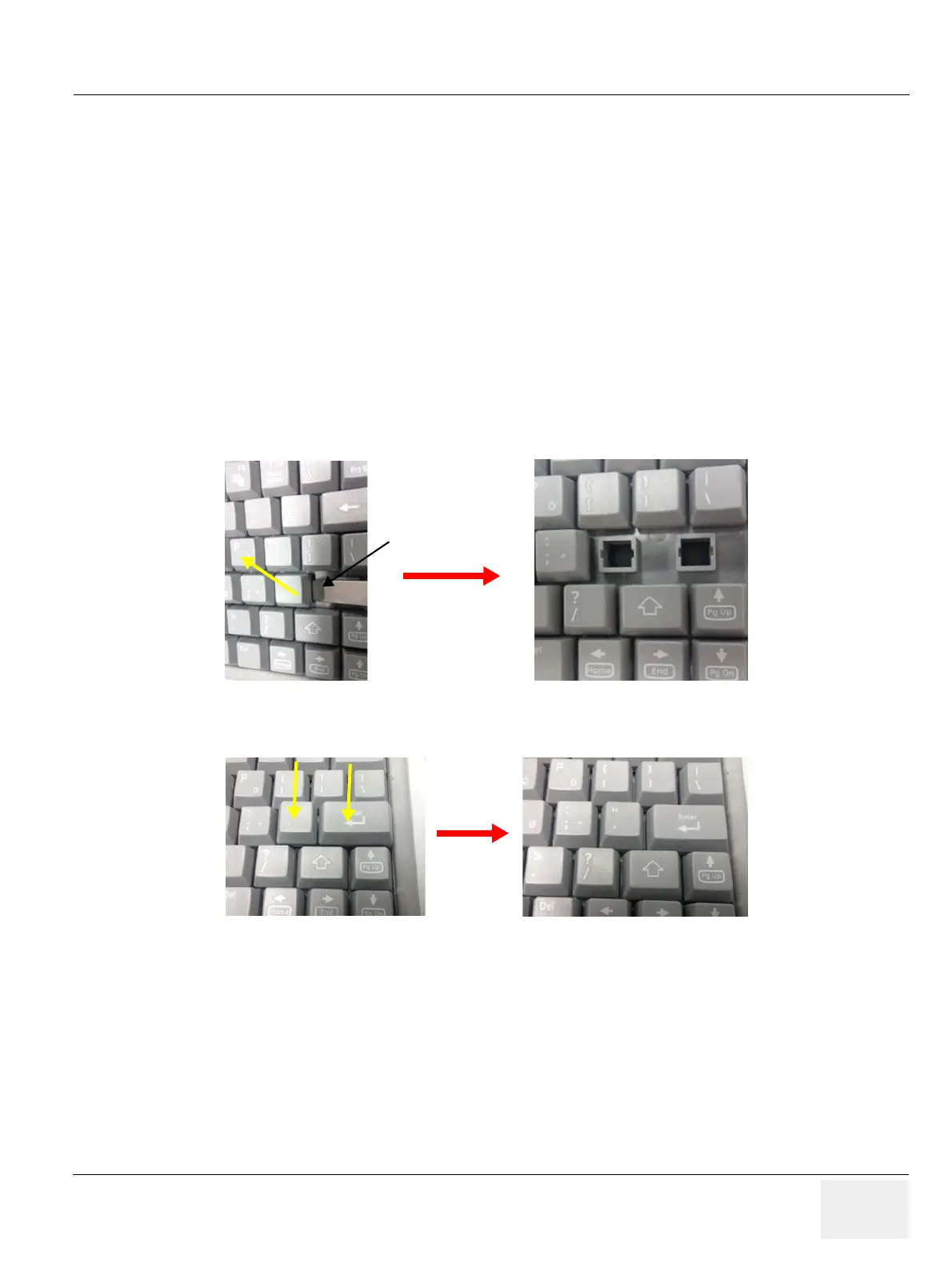

Figure 8-219 Removing the Key(should be changed)
Figure 8-220 Assembling the key
Flat tool
