8-90 Section 8-25 - Replacement of OPIO

7.) Unscrew 4 screws to remove upper keyboard assembly.

8-25-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-10: Replacement of OPIO - Functional Tests.

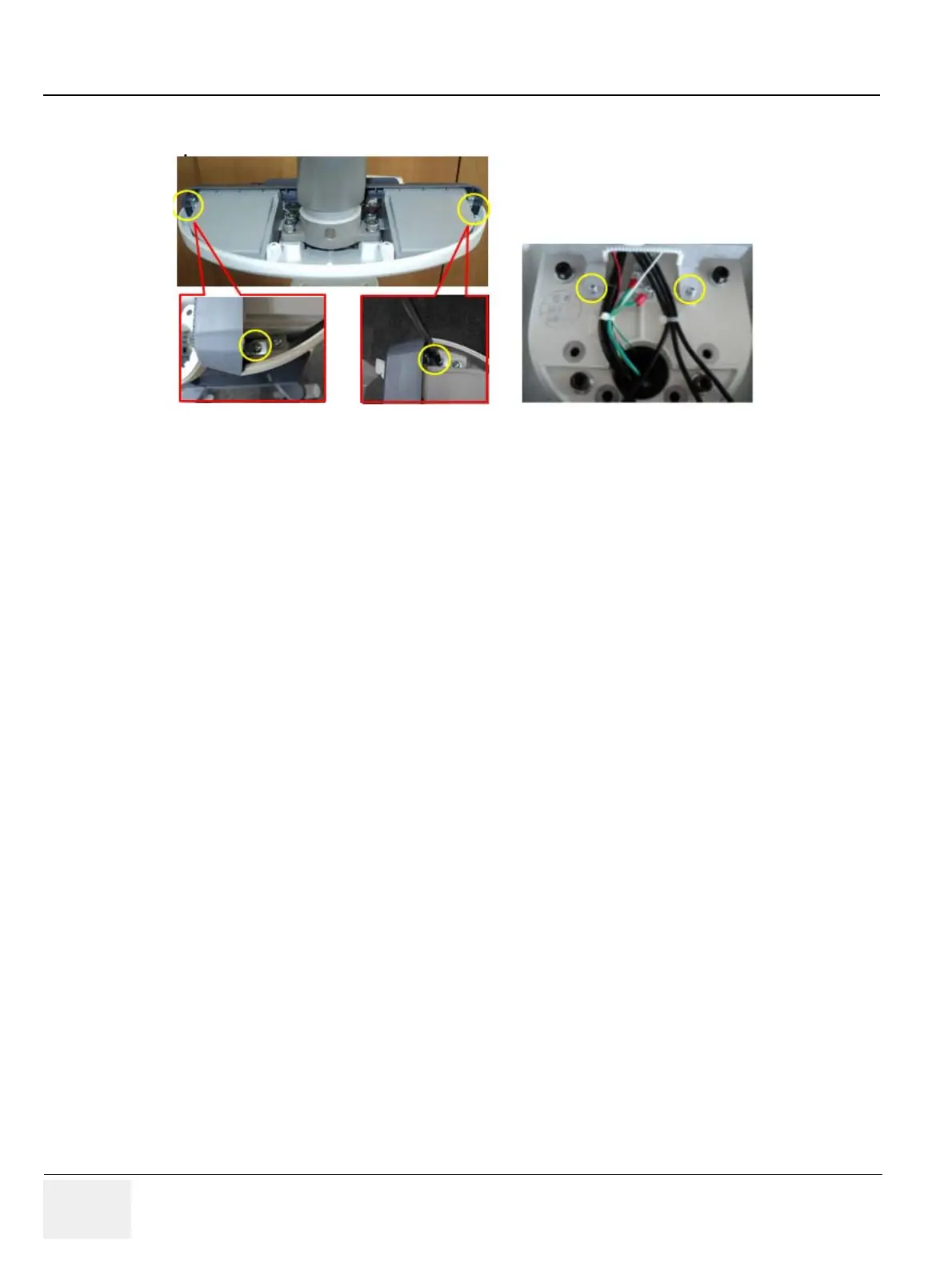

Figure 8-135 Unscrewing 4 screws to remove upper keyboard assembly
