8-186 Section 8-59 - Replacement of WIRELESS LAN
Section 8-59
Replacement of WIRELESS LAN
8-59-1 Manpower
One person, 30 minutes
8-59-2 Tools
Standard Field Service Tool Kit
8-59-3 Preparation
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-59-4 Removal Procedure
1.) Unscrew 2 screws to remove POWER CORD BRACKET.
2.) Remove REAR COVER and unscrew 7 screws to remove REAR EMI COVER.

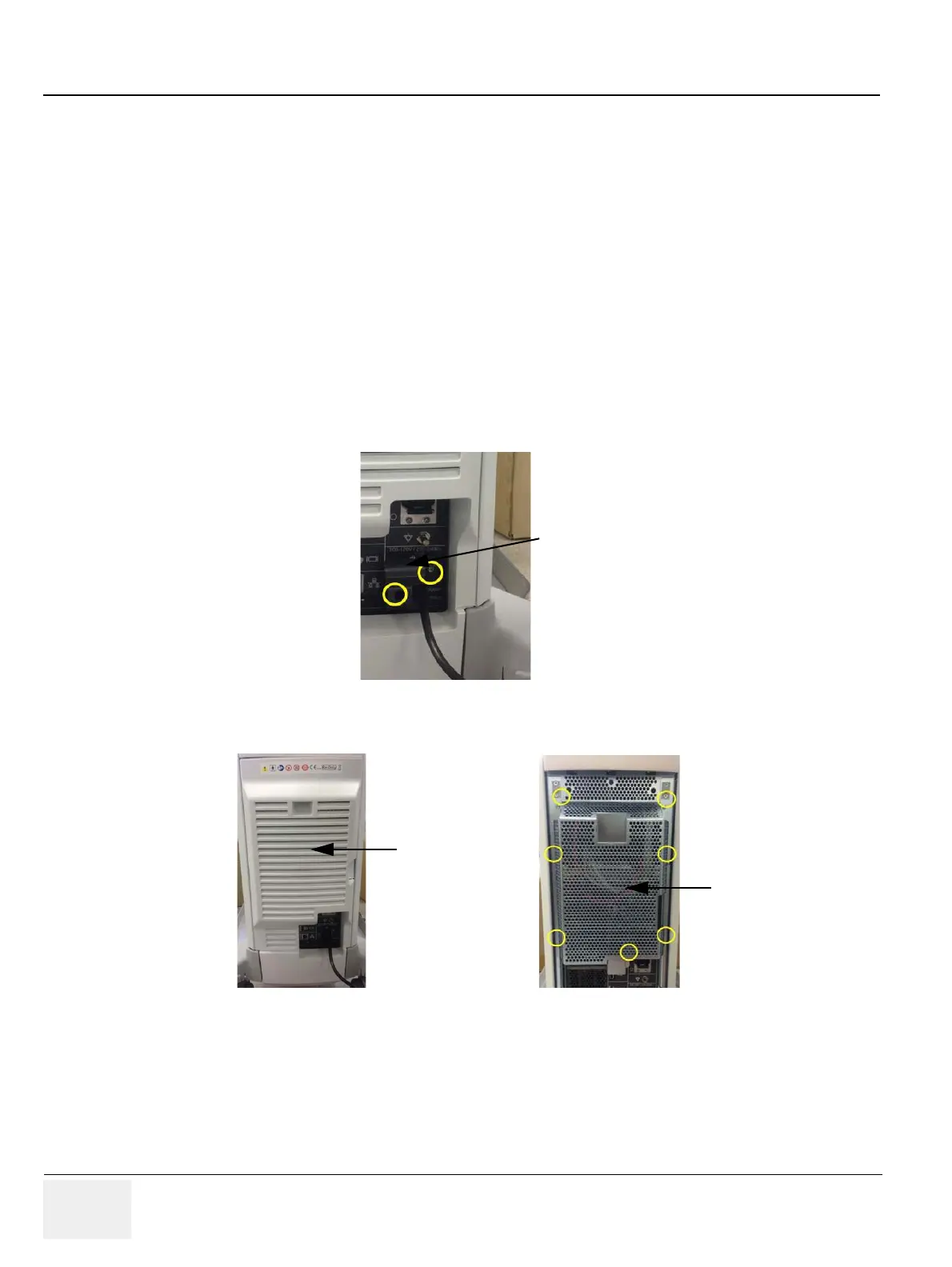

Figure 8-263 Unscrewing 2 screws to remove POWER CORD BRACKET
Figure 8-264 Removing REAR COVER and unscrewing 7 screws to remove REAR EMI COVER
To Next Page
