GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

8-154 Section 8-50 - Replacement of the OPIO USB Sub PWA

2.) Unscrew 5 screws and disconnect 2 USB cables, Then Remove 2 Brackets and OPIO USB Sub

PWA.

8-50-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-42: Replacement of the OPIO USB Sub PWA - Functional Tests.

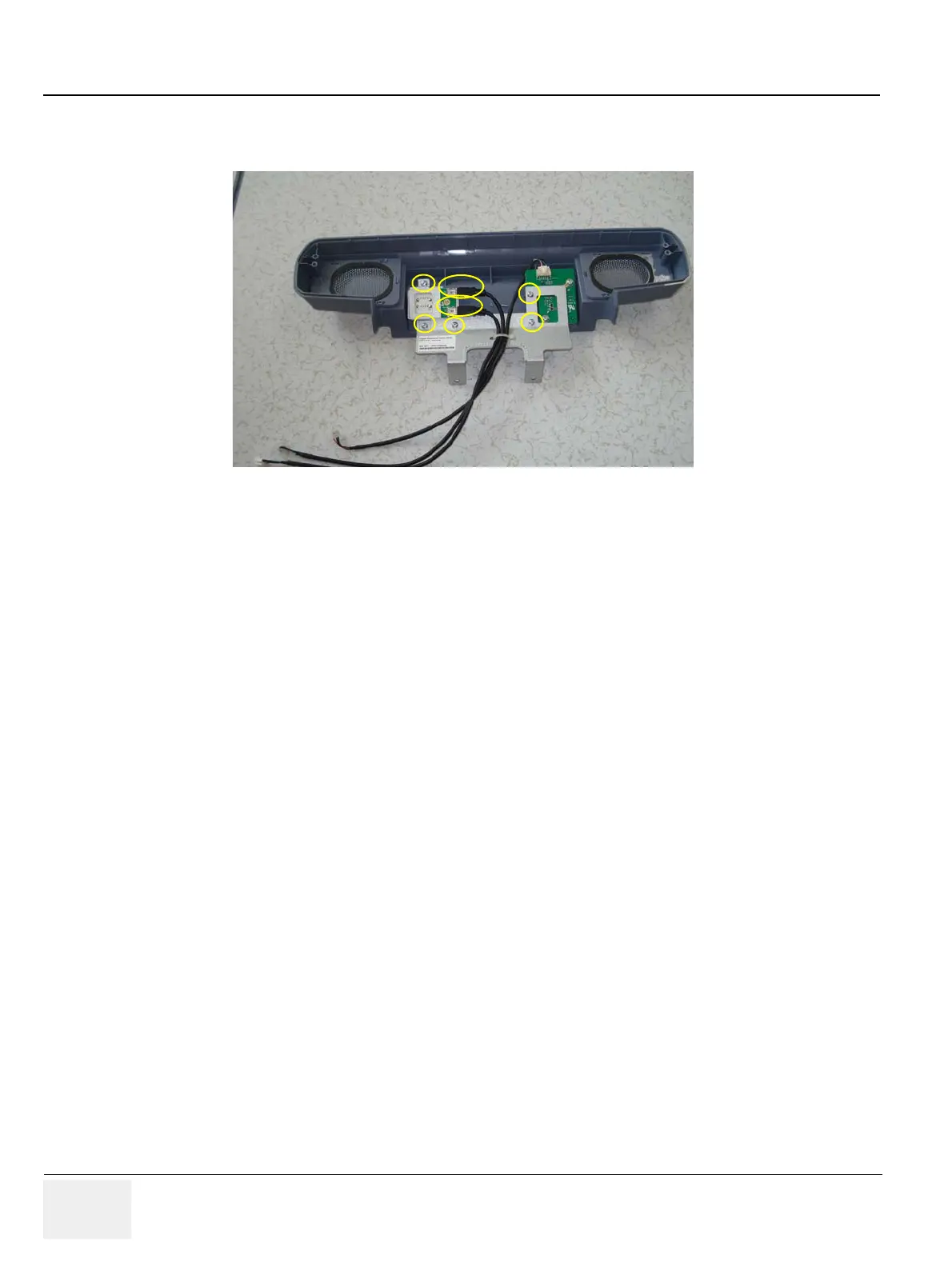

Figure 8-218 Removing 2 Brackets and OPIO USB Sub PWA
