GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-63

2.) Remove 5 probe holders. Refer to the figure below.

3.) Lift up main keyboard assy. Refer to the figure below.

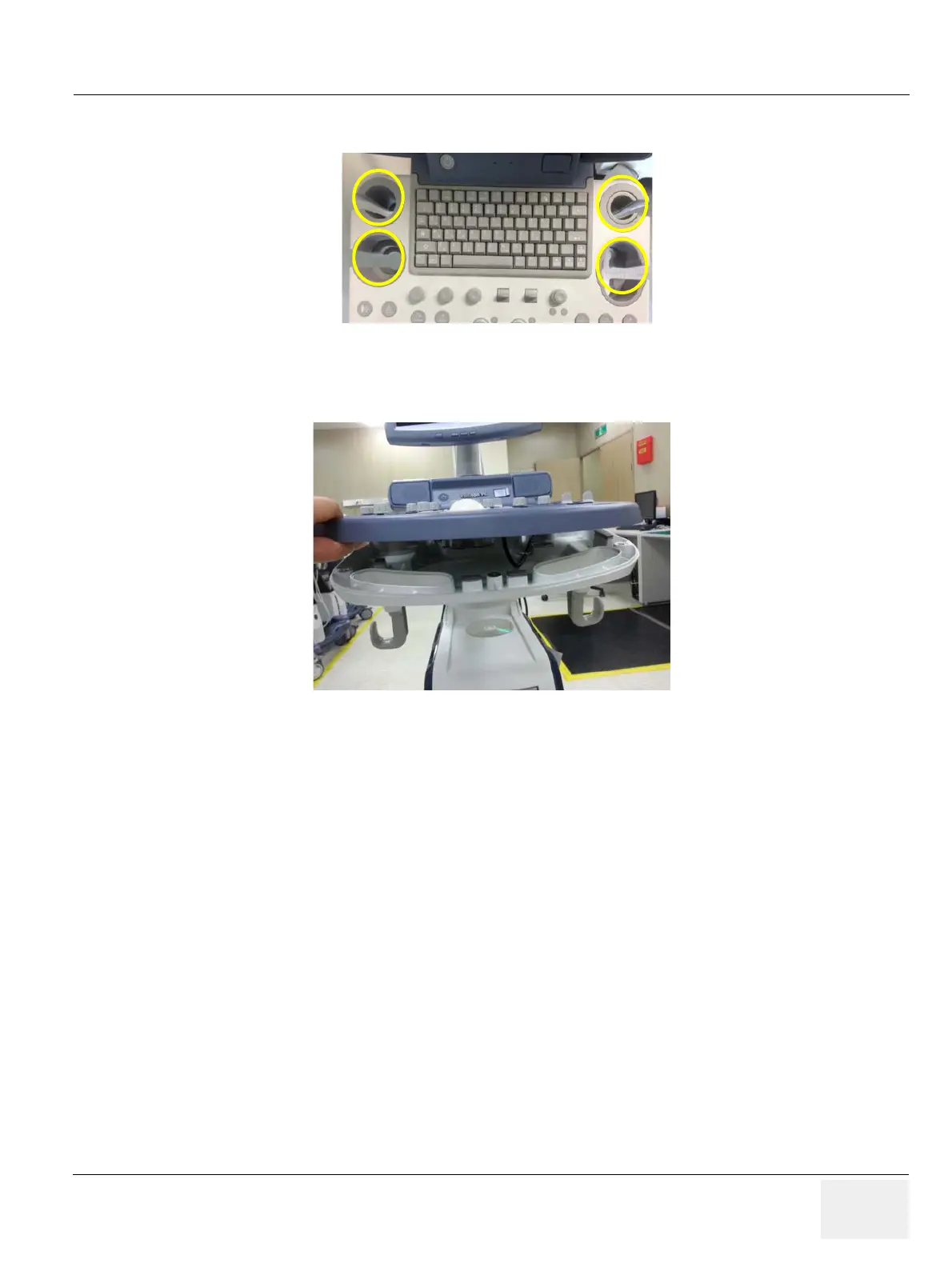

Figure 8-83 Removing 5 probe holders

Figure 8-84 Lifting up main keyboard assy
