6.) Remove 2 RUBBER CAPS on SPEAKER COVER LEFT/RIGHT.
7.) Unscrew 2 screws and then remove the SPEAKER COVER LEFT/RIGHT.. Refer to the figures
below.
8.) Unscrew 2 screws and remove the upper keyboard assy.

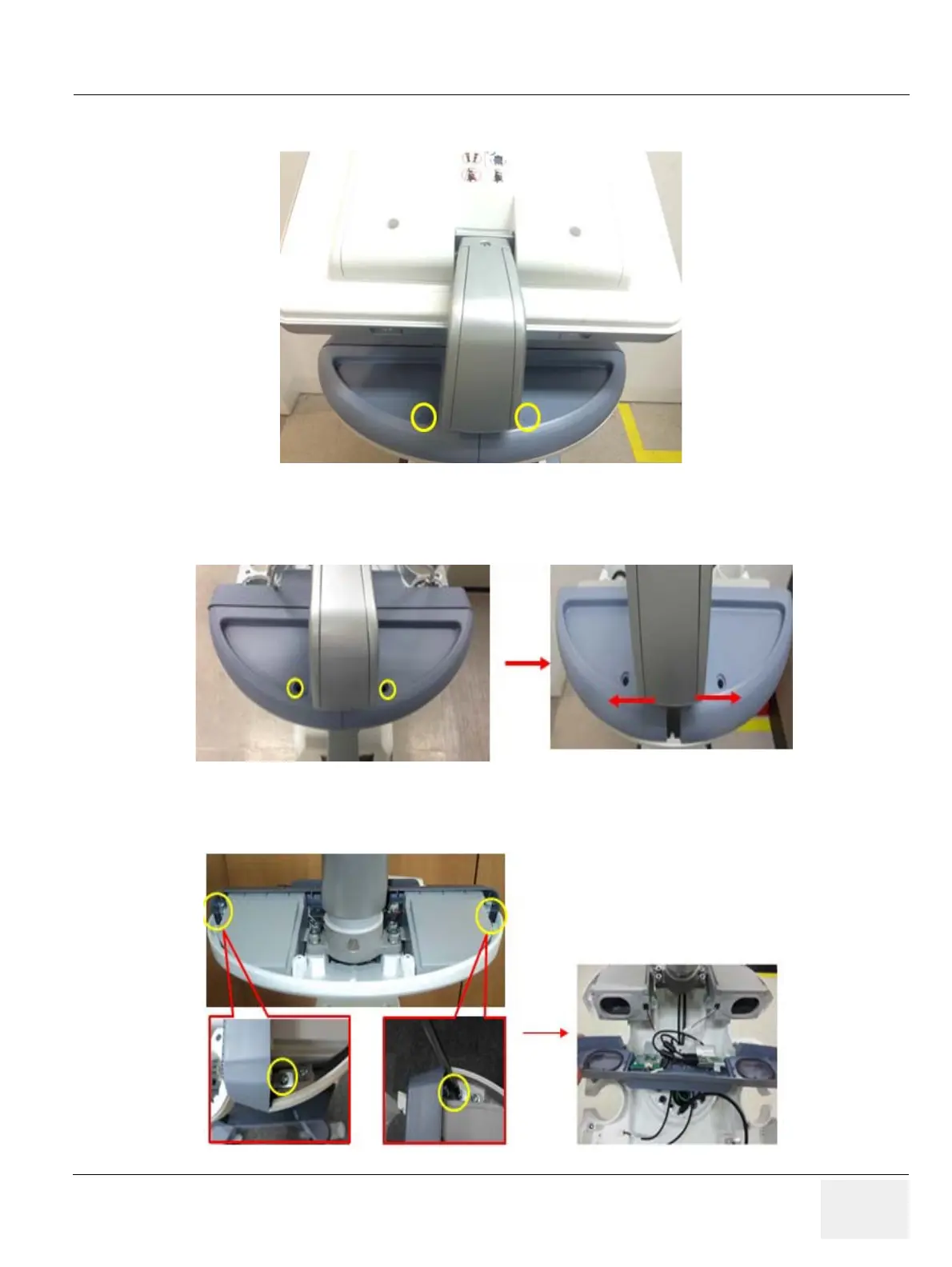

Figure 8-87 Removing the RUBBER CAPS
Figure 8-88 Unscrewing 2 screws to remove SPEAKER COVER LEFT/RIGHT
Figure 8-89 Unscrewing 2 screws
To Next Page
