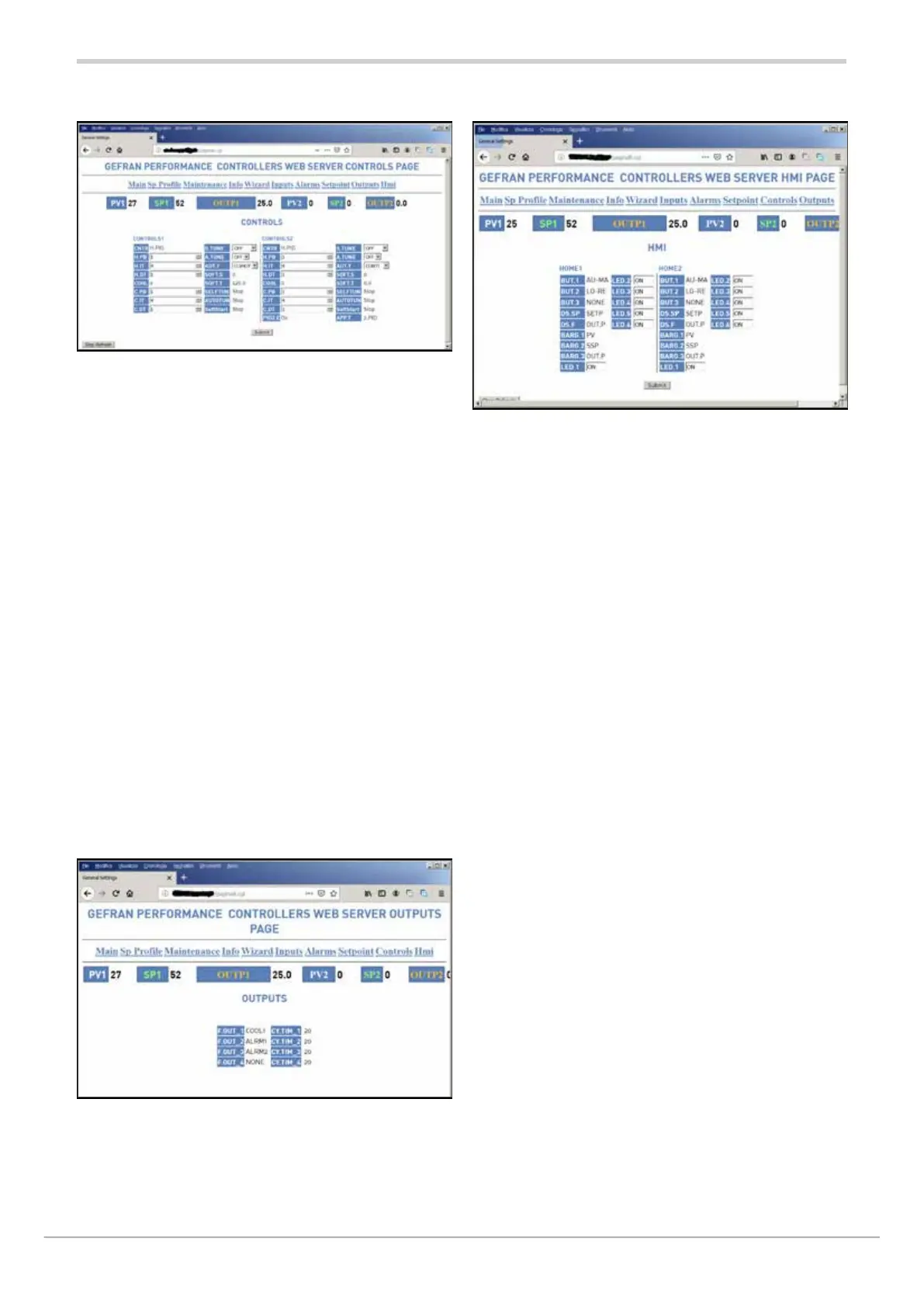

The CONTROLS page contains the information listed below
Parameters:
• CNTR : type of pid 1,2 controller
• H.PB : proportional heating band 1,2
• H.IT : integral heating time 1,2
• H.DT : derivative heating time 1,2
• C.PB : proportional cooling band 1,2
• C.IT : integral cooling time 1,2
• C.DT : derivative cooling time 1,2
• COOL : type of cooling fluid 1,2
• S.TUNE : self-tuning enabled 1,2
• A.TUNE : autotuning enabled 1,2
• ATU.T : type of autotuning 1,2
• SOFT.S : soft start enabled 1,2
• SOFT.T : soft start time 1,2
• SELFTUN : self-tuning status 1,2
• AUTOTUN : autotuning status 1,2
• SoftStart : softstart status 1,2
• PID.E : pid 2 enabled
• APP.T : PID control type
• The page is refreshed every 2.5 seconds. Follow the steps
listed on the previous page to edit these fields
The OUTPUTS page may be used to display
the following information on outputs:
F.OUT : reference to output 1,2,3,4
CY.TIM: cycle time for outputs 1,2,3,4 (relay, triac, logical)
The HMI page
contains the following fields:
• BUT.1 : M/A function key for home 1 and 2
• BUT.2 : Key2 function key for home 1 and 2
• BUT.3 : Key3 function key for home 1 and 2
• DS.SP : SV display function for home 1 and 2
• DS.F : F display function for home 1 and 2
• BARG.1 : Bargraph 1 for home 1 and 2
• BARG.2 : Bargraph 2 for home 1 and 2
• BARG.3 : Bargraph 3 for home 1 and 2
• LED.1,2,3,4,5,6 : Led function for home 1 and 2
• The page is refreshed every 2.5 seconds. Follow the
steps listed on the previous page to edit these fields.
