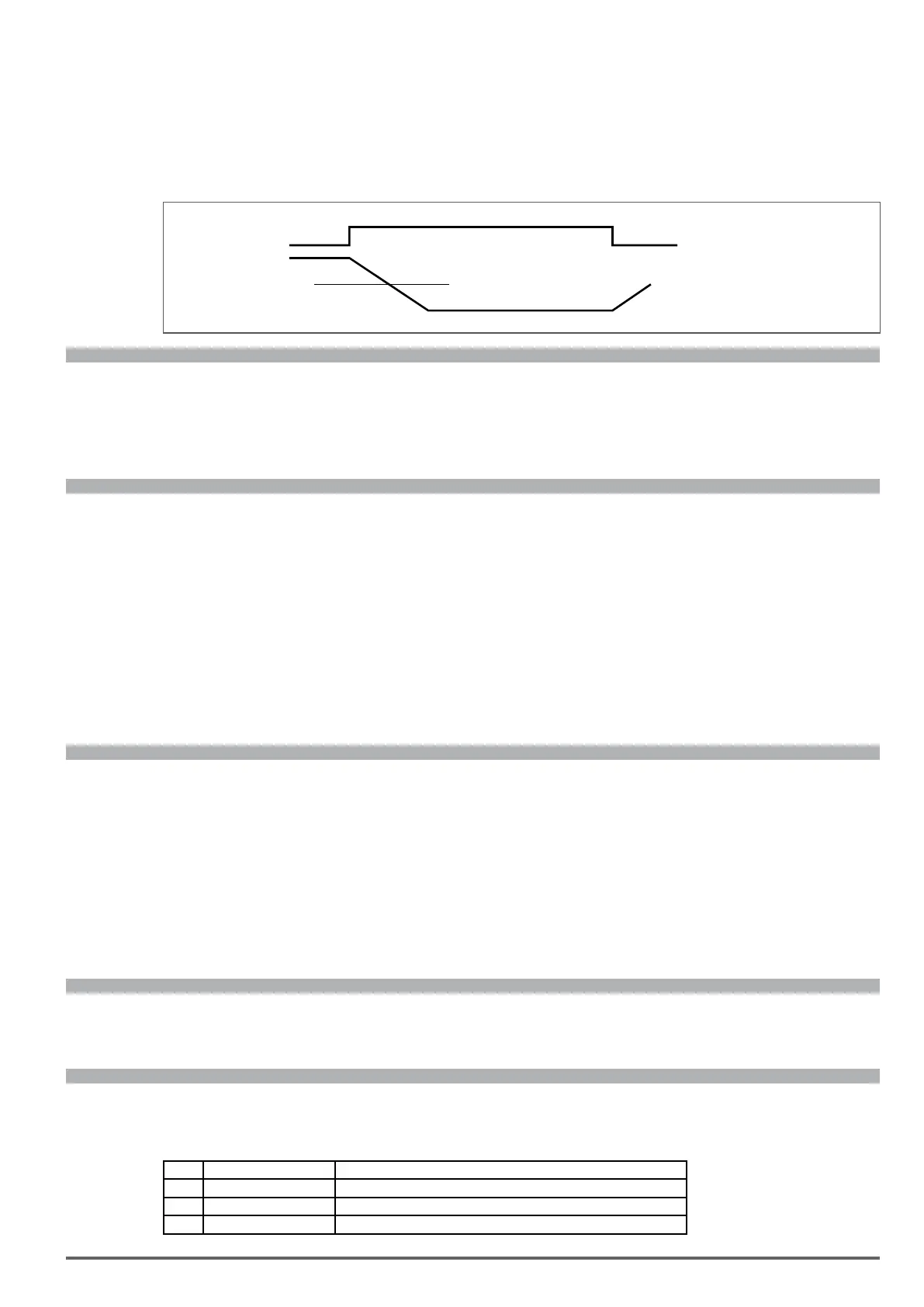

ADL300 • Functions description and parameters list 25
Setting of the door opening speed.
Source to enable brake release through the digital input. In standard sequence brake release is controlled
by the drive and therefore this parameter is set to ONE. In case that brake release should be conditioned
by some external control (e.g. PLC), set this parameter to digital input controlled by PLC.
Internal sequence for brake release will wait until this input is asserted.
During run brake will be closed whenever this input becomes not asserted.
Door open src
Speed
Door open speed
Function enable signal
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.3.13 11088 Contactorless Enable BIT 0 0 1 RW FVS
This should be congured if the contactorless mode is desired. By enabling this parameter, the fast enable command is
brought to digital Input 7 and the drive indicates the contactorless operation mode to the controller through digital output 4
(see Figure 7.3.2.8-A in the ADL300 QS installation manual).
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.3.14 11826 Inspection Behaviour Enum None 0 2 R/Z FVS
0 None
1 Fast Stop
2 Immediate
Manages the stop ramp in maintenance/inspection mode. If enabled, the function allows greater deceleration compared to
nominal deceleration.
Three modes are available:
None: function disabled (default). The car stops with the normal ramps inserted.
Fast Stop: the 200 ms stop function is enabled if the set maintenance speed (PAR 11024 Multi speed 2 or PAR 11828
Inspection speed) is below 0.63 m/s. If the set speed is higher it is automatically limited to 0.63 m/s.
Immediate: car stops immediately with brake close. The car stops immediately (with no ramp) when the button on the
maintenance button panel is released.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.3.15 11828 Inspection speed Enum 2 R/Z FVS
0 Multi speed 0
1 Multi speed 1
2 Multi speed 2
3 Multi speed 3
4 Multi speed 4
5 Multi speed 5
6 Multi speed 6
7 Multi speed 7
8 Null
Maintenance speed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.3.16 12014 Trip number INT32 0 R FVS
The lift journey counter is displayed. The counter increases each time the Start lift signal is activated.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.3.17 12016 Sequence state UINT16 0 R FVS
The lift sequence status is displayed.
Ref PAR 12016 description Note
0 Idle Not active
1 Cont close Close Contact on Sequence lift diagram (*)
2 Drive ready
