- 112 -

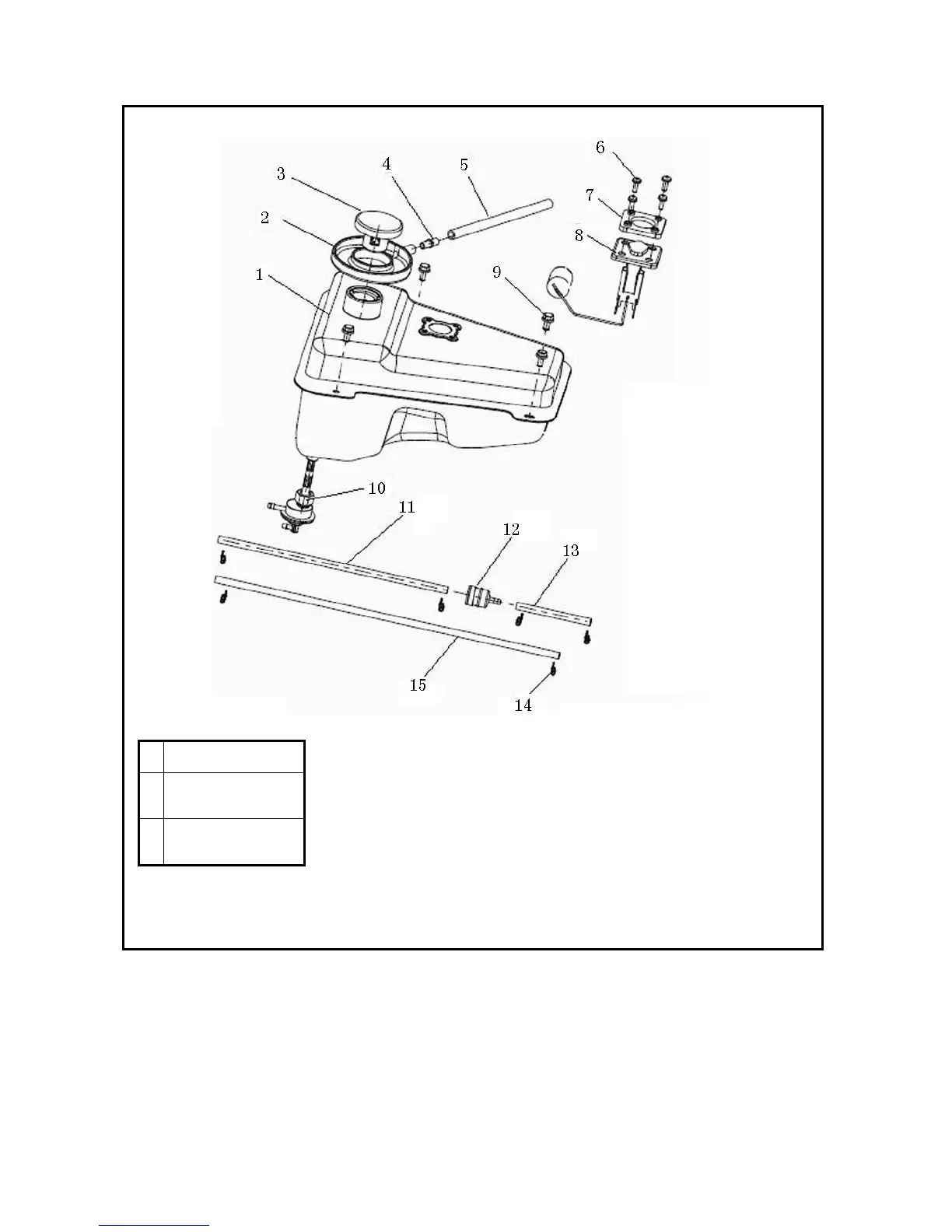

1 oil tank assembly 2 waterproof gasket 3 fuel tank assembly 4 connecting tube 5 fuel tube 6

assembled screw M5×14 7 fuel level sensor cushion 8 fuel sensor assembly 9 bolt M6×12 10 fuel

tank switch assembly 11 fuel tube 12 filter assembly 13 fuel tube 14 steel wire clamp ф8 15 fuel

tube

Seat

Fuel tank capacity:

5.5 L±0.2L

Bolt 9(standing bolt of

oil tank) torque force:

5-9 N·m

Note: in removing fuel

tank, turn fuel switch

to "OFF".
