Generic Onyx 50 - Page 115

- 113 -

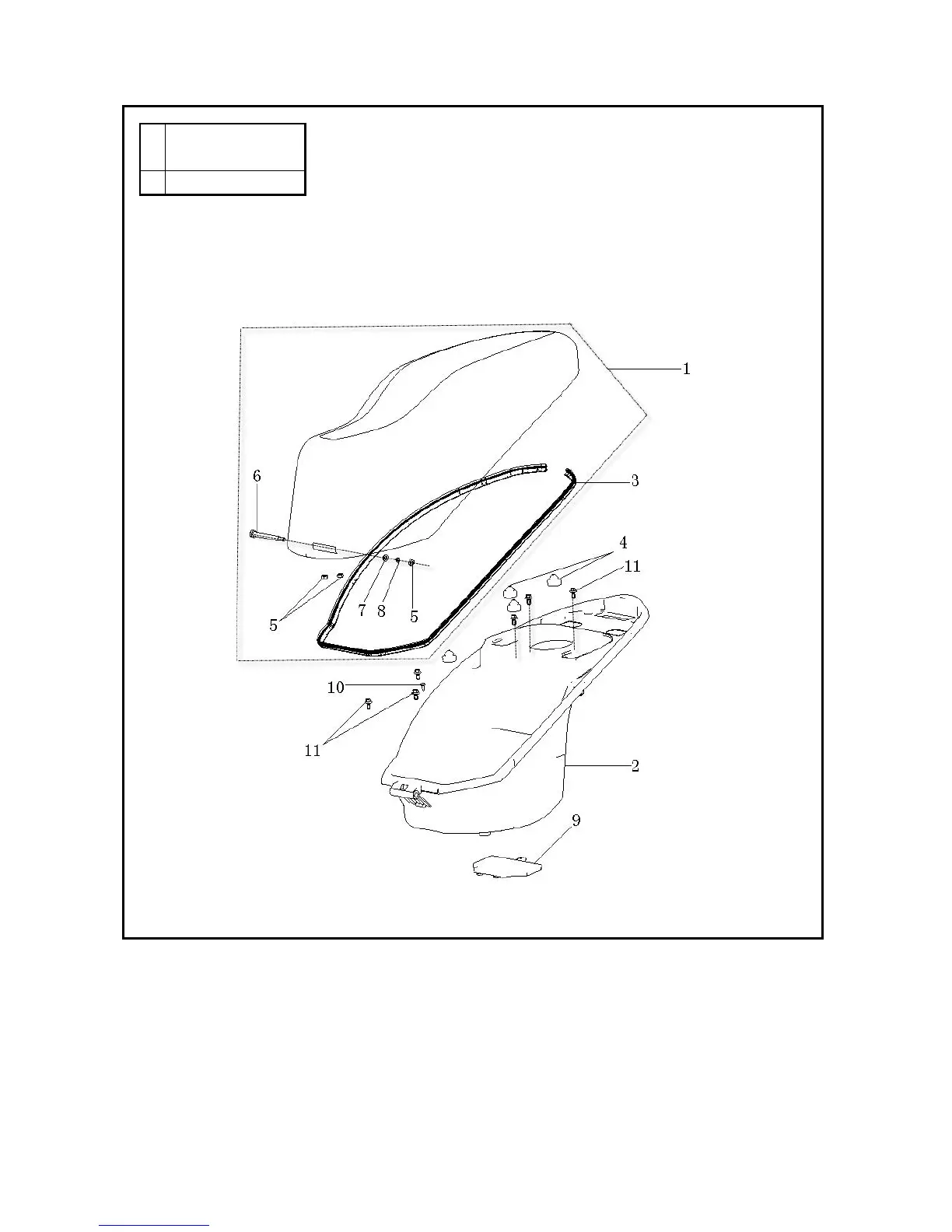

1 seat assembly 2 helmet case 3 sealing strip 4 rubber cushion 5 nut M6 6 pin roll 7 gasket
6 8 elastic gasket 6 9 helmet bottom cap 10 self-tapping screw ST4.2×13 11 bolt M6×16
A
Bolt 11 torque force:
5-9 N·m
B Exclusive for seat
