9.3 Fuel tank/seat
9.3.1 Removal
Remove rear storage rack assembly.
Open seat.
Remove sparking-plug cover and machine oil pot cap.
Remove pedal rubber mat.
Open storage battery case cap.
Remove storage battery.
Remove seat assembly and helmet case standing bolt.
Remove seat assembly and helmet case.
Remove left/right front guard plate assembly.
Remove foot guard plate and left and right guard plate.
Remove left and right steering lamps and left and right
decoration articles for guard plate.
Remove fuel tank standing bolt.
Remove fuel tank.
Turn fuel switch to "OFF".
Disconnect fuel tube.
Remove fuel tank from the frame.
Note:

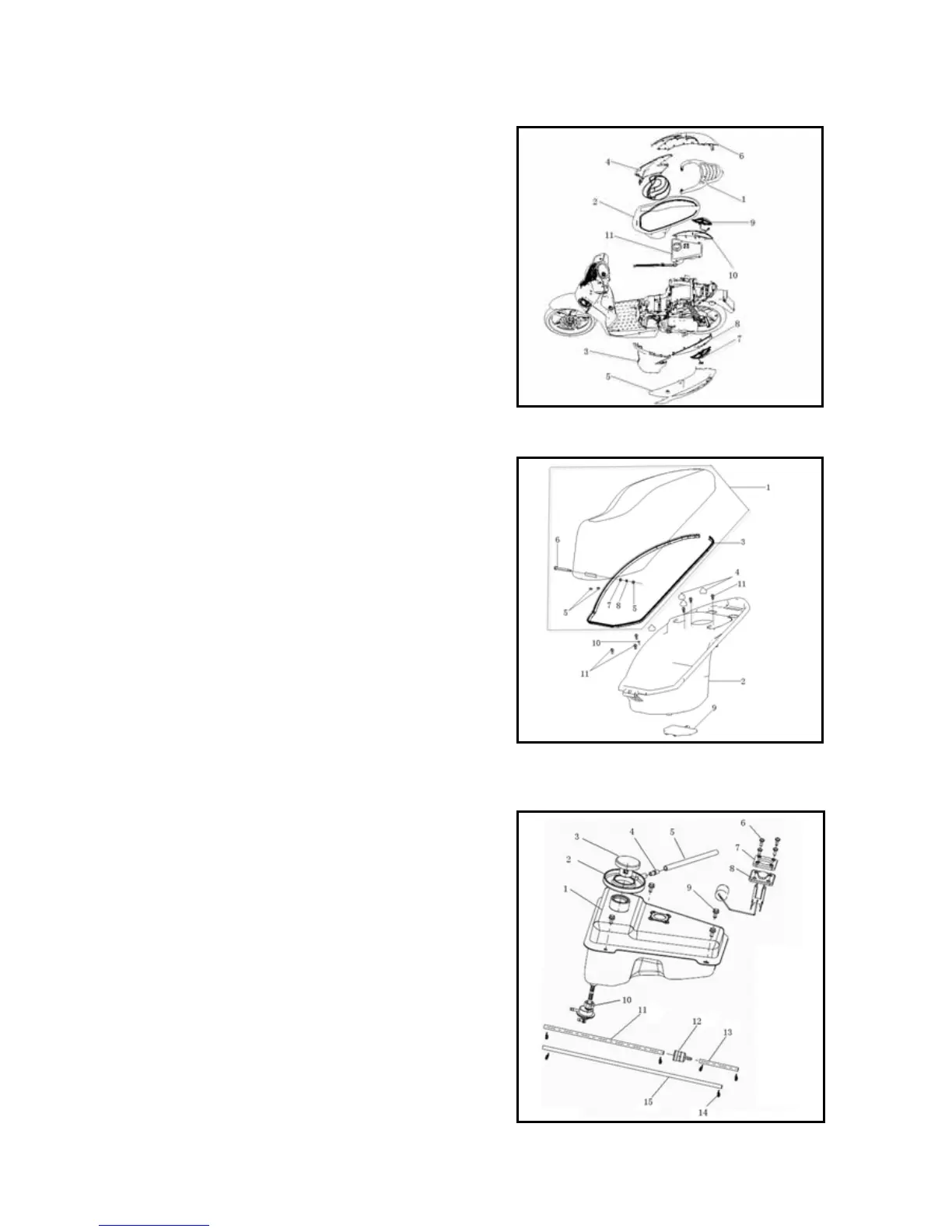

Detail removing diagram see P98, 99 and 100.
9.3.1 Installation
Install according to reversed sequence of removal.
Torque force of installation:
Fuel tank standing bolt 5 - 9 N·m
Helmet barrel standing bolt 5 - 9 N·m
