- 116 -

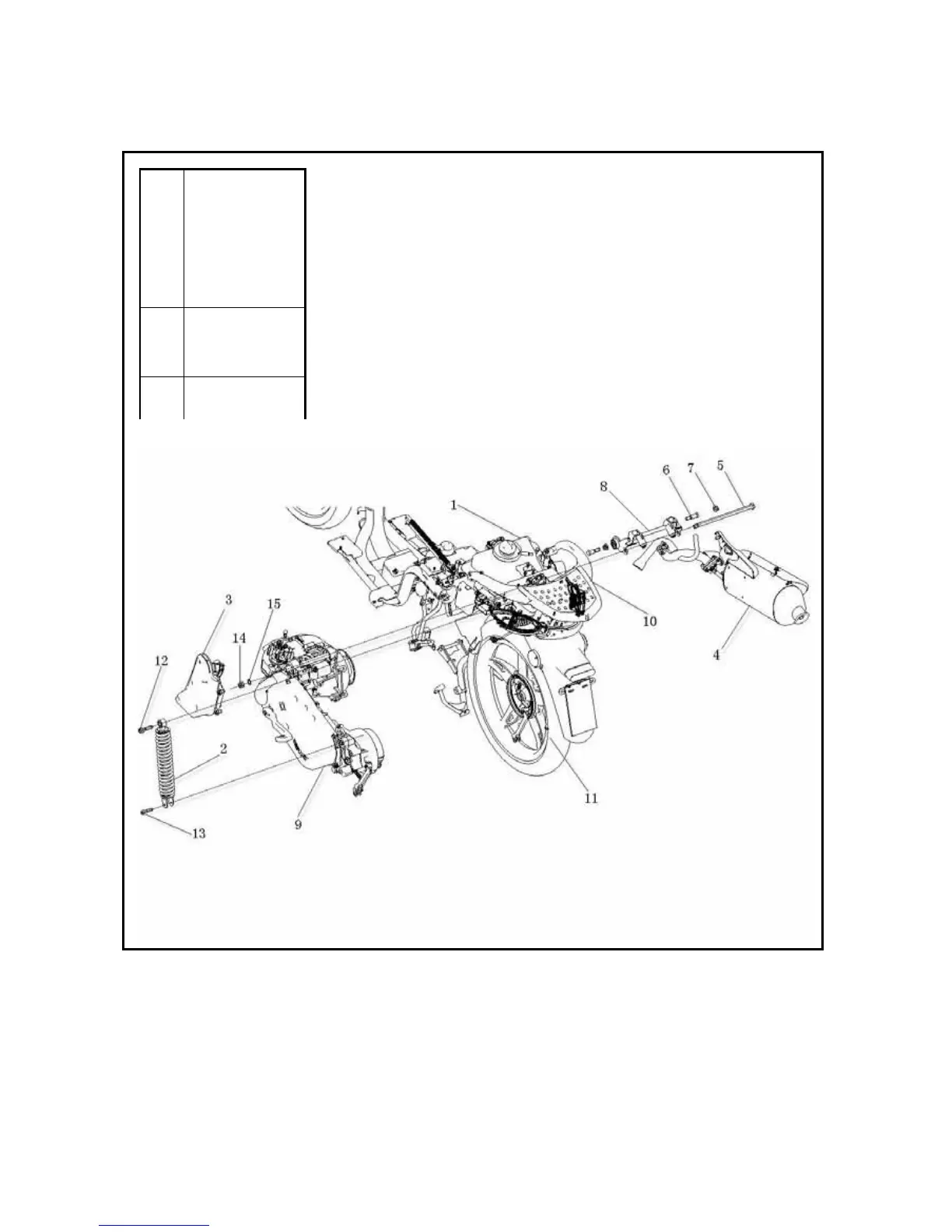

Removal and installation of motor
1 fuel tank 2 rear shock absorber assembly 3 gas filter assembly 4 muffler 5 fulcrum axle 6 square
bolt M10X1.25X41 7 locking nut M10X1.25 8 kinetic force hanger assembly 9 motor assembly
10 rear storage rack assembly 11 rear wheel assembly 12 bolt M10×1.25×40 13 bolt M8×35 14 nut
M12×1.25 15 teeth serrated lock gasket 12
A
Kinetic force
hanger support
fulcrum axle
standing nut 14
torque force:
55-62N·m
B
Square bolt 6
torque force:
37-44N·m
C
Bolt 12 torque
force: 37-44N·
m
