- 10 -

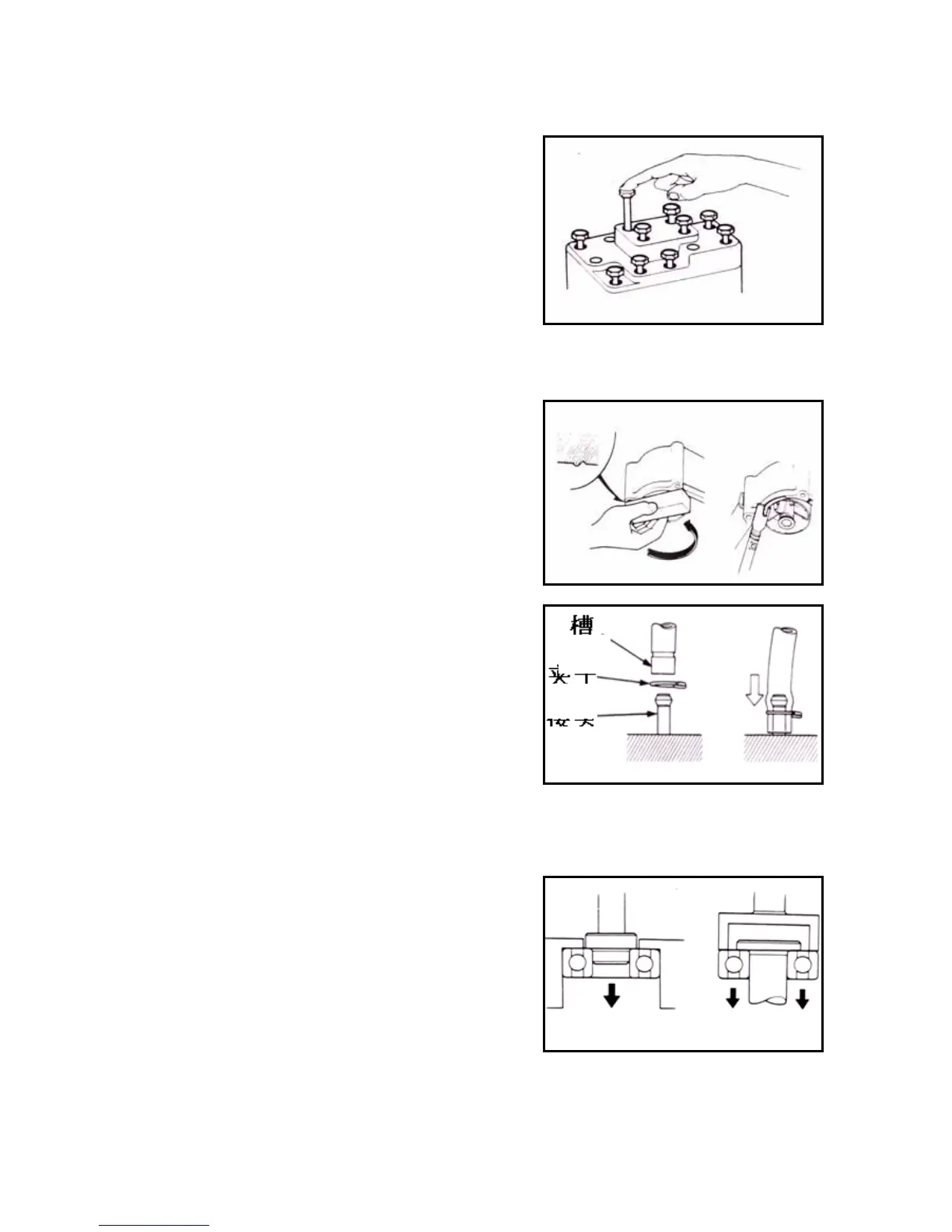

Bolts and screws with different length will be separately used for
assembly parts and shields, and they shall be correctly mounted.
Insert a bolt into a hole to check whether it is proper if you are
confused.
Fill the groove with grease before mounting an oil seal. Check
whether the oil seal is smooth or damaged during assembly.
When installing a hosepipe (fuel, vacuum or cooling agent),
insert its end into the bottom of the connector so that the hose clip
can properly fix the connector. Rubber or plastic dirt-proof boot
shall be mounted according to the original design.
During dismantling ball bearing, one or two (inside & outside)
bearing rollers shall be supported by tools. Ball bearings may be
damaged and have to be replaced if only one roller (either inside
or outside) is imposed with force.
Groove
Clip
Connector
Bearings will be broken under either occasion as
mentioned.
