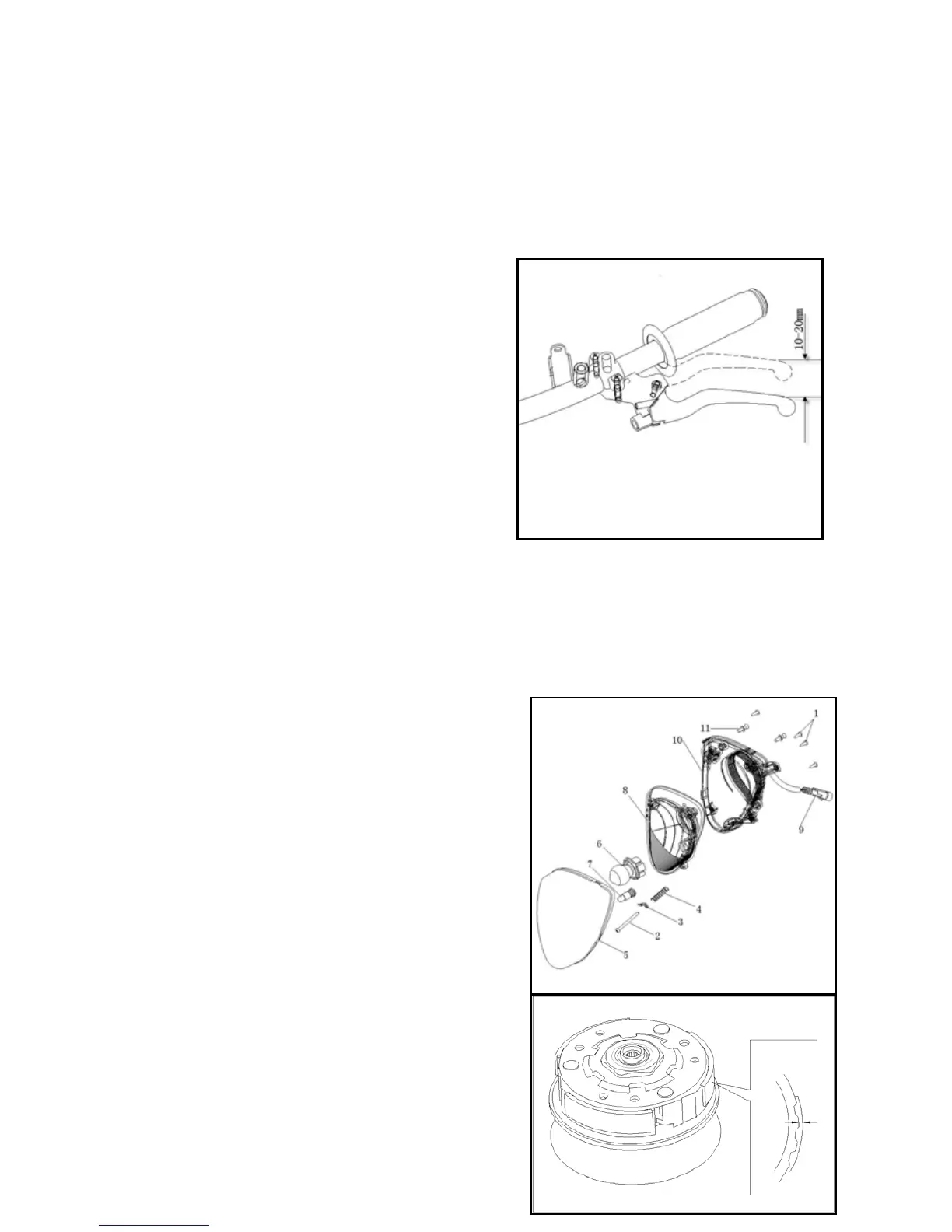

Measure the free path of front brake at the point of the brake lever.
Free path: 10-20mm
Free path of rear brake
Measure the free path of rear brake at the point of the brake
pedal.
Free path: 10-20mm
Inspection of brake fluid level
Use the front brake to the upper limit, and check the oil level thought the oil indicator. In case the brake fluid level
is at or below the arrow in the picture, certain brake fluid (DOT3 or DOT4) shall be added until it reach upper
limit.
Note:
The oil pump component shall be paralleled with the ground during the inspection.
Front light
Remove the left and right rearview mirror components.
Remove the front shield.
Disconnect the lead of front light.
Fix the front light, and rotate the bulb counterclockwise.
Remove the bulb.
