- 84 -

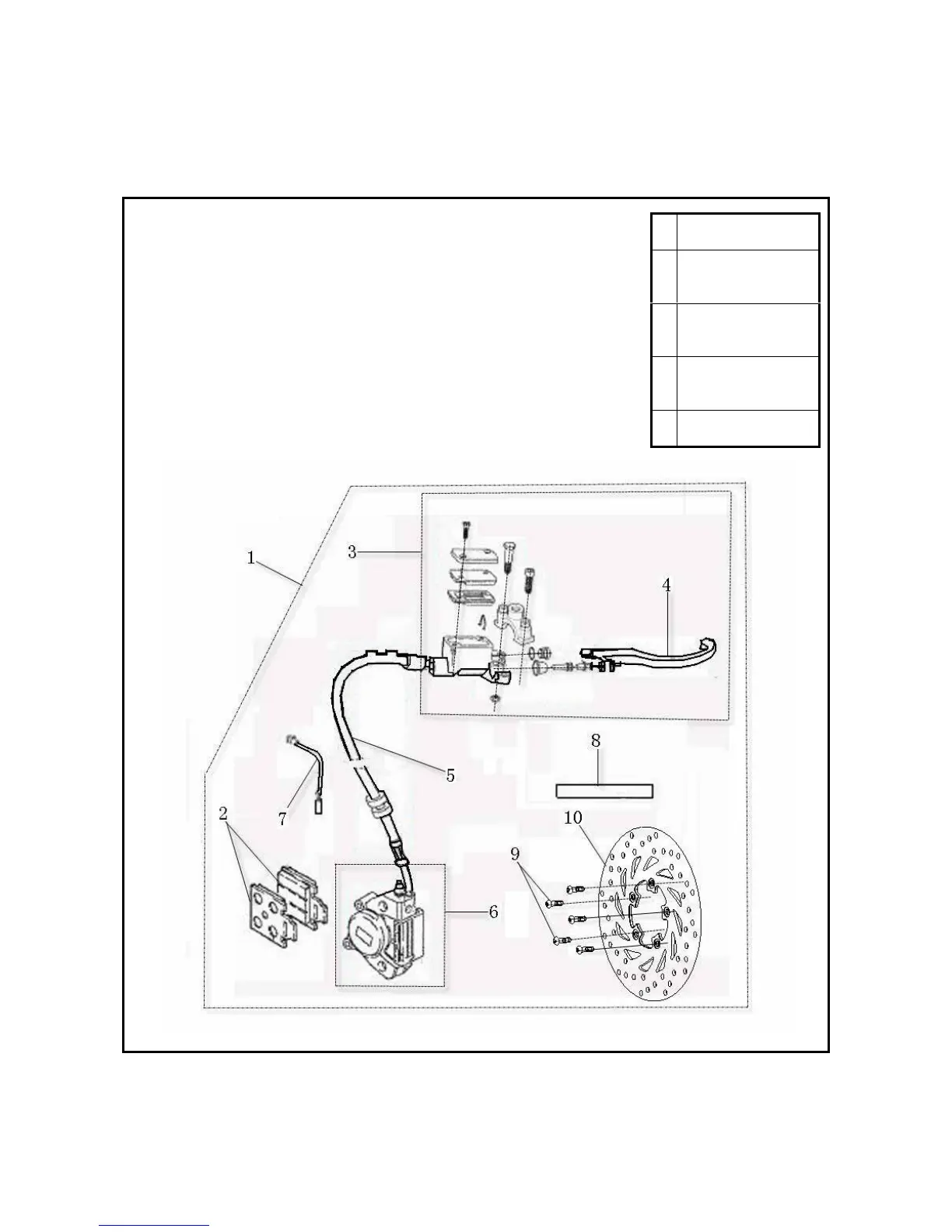

Front Fluid Brake
A
Dia of front brake disc:
φ 220mm
B
Thickness of front
brake disc: 4.0mm
Limit: 3.0
C
Thickness of front
brake disc: 4.0mm
Limit: 3.0
D
Installing torque of bolt
9 in the picture: 5-9
N·m
E
Free path of brake
handle: 10-20mm
