Generic Onyx 50 User Manual

- 85 -
1 Front brake component 2 Friction piece component 3 Oil pump component 4 Liquid brake handle
5 Brake tube assembly 6 Brake cylinder component 7 Switch assembly 8 Shield 9 Bolt M6×20
10Front brake plate

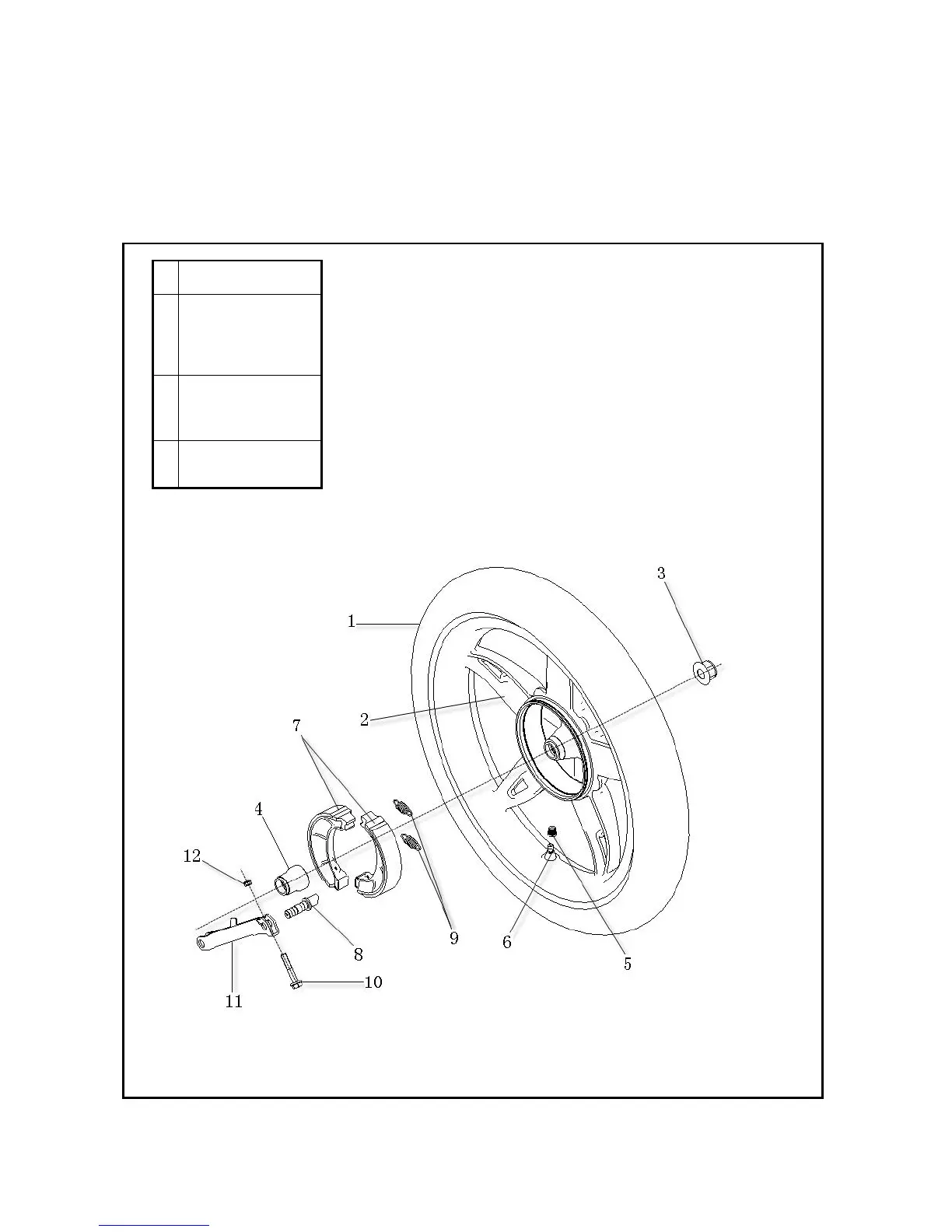

Rear Drum Brake
A
Torque of bolt 3 in the
picture: 100-113 N·m
B
Inner dia. Of rear
drum brake
φ140mm
Wearing limit: φ
141mm
C
Thickness of friction
piece of rear
brake:4.0mm
Limit: 3.0mm
D
Torque of bolt 10 in
the picture: 5-9 N·m
