Chapter 1 Overview of NVR
1.1 Front Panel

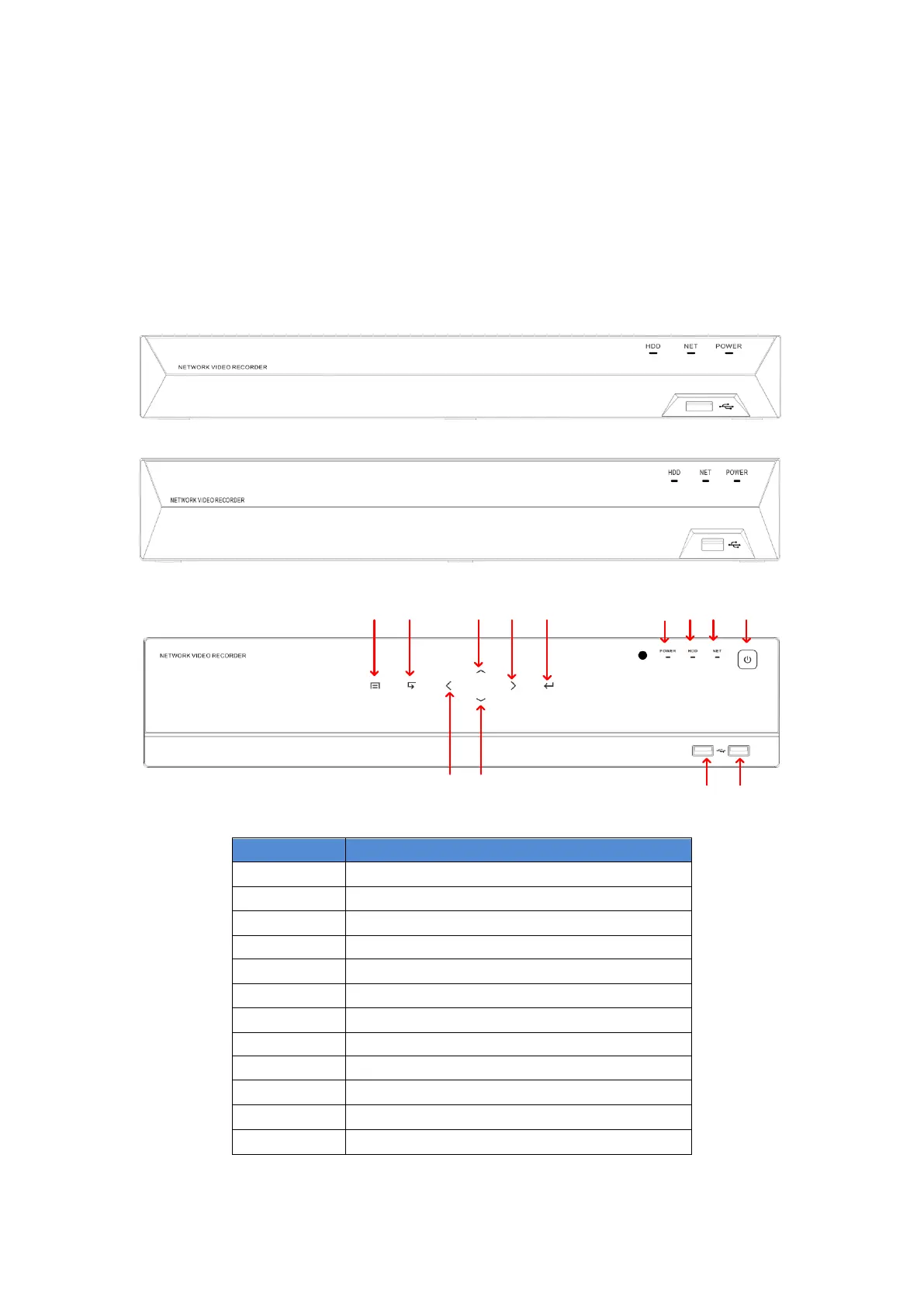

NVR Front Panel, as shown in figure 1-1 to figure 1-7.
Figure 1-1 Front panel of M1 case
Figure 1-2 Front panel of N1 case
1234
567
8
11
12
9
10
13
Figure 1-3 Front panel of W1 case
No.
Function Description
1
Power switch
2
Network status light
3
Hard disk status light
4
Power status light
5
Enter
6
Right
7
Up
8
Down
9
Left
10
Backspace
11
Main Menu
12/13
USB interface
Table 1-1 Description of front panel
