Local:
Port Status Priority Index Oper-Key Flag
WGE1/0/1(R) S 32768 11 1 {ACDEF}
WGE1/0/2 S 32768 12 1 {ACDEF}
WGE1/0/3 S 32768 13 1 {ACDEF}
Remote:
Actor Priority Index Oper-Key SystemID Flag
WGE1/0/1 32768 81 1 0x8000, 000f-e267-57ad {ACDEF}
WGE1/0/2 32768 82 1 0x8000, 000f-e267-57ad {ACDEF}
WGE1/0/3 32768 83 1 0x8000, 000f-e267-57ad {ACDEF}
The output shows that link aggregation group 1 is a Layer 2 dynamic aggregation group that contains
three Selected ports.
Example: Configuring Layer 2 aggregation load sharing
Network configuration
On the network shown in Figure 10, perform the following tasks:
• Configure Layer 2 static aggregation groups 1 and 2 on Device A and Device B, respectively.
• Enable VLAN 10 at one end of the aggregate link to communicate with VLAN 10 at the other
end.
• Enable VLAN 20 at one end of the aggregate link to communicate with VLAN 20 at the other
end.
• Configure link aggregation groups 1 and 2 to load share traffic across aggregation group
member ports.
{ Configure link aggregation group 1 to load share packets based on source MAC addresses.
{ Configure link aggregation group 2 to load share packets based on destination MAC
addresses.

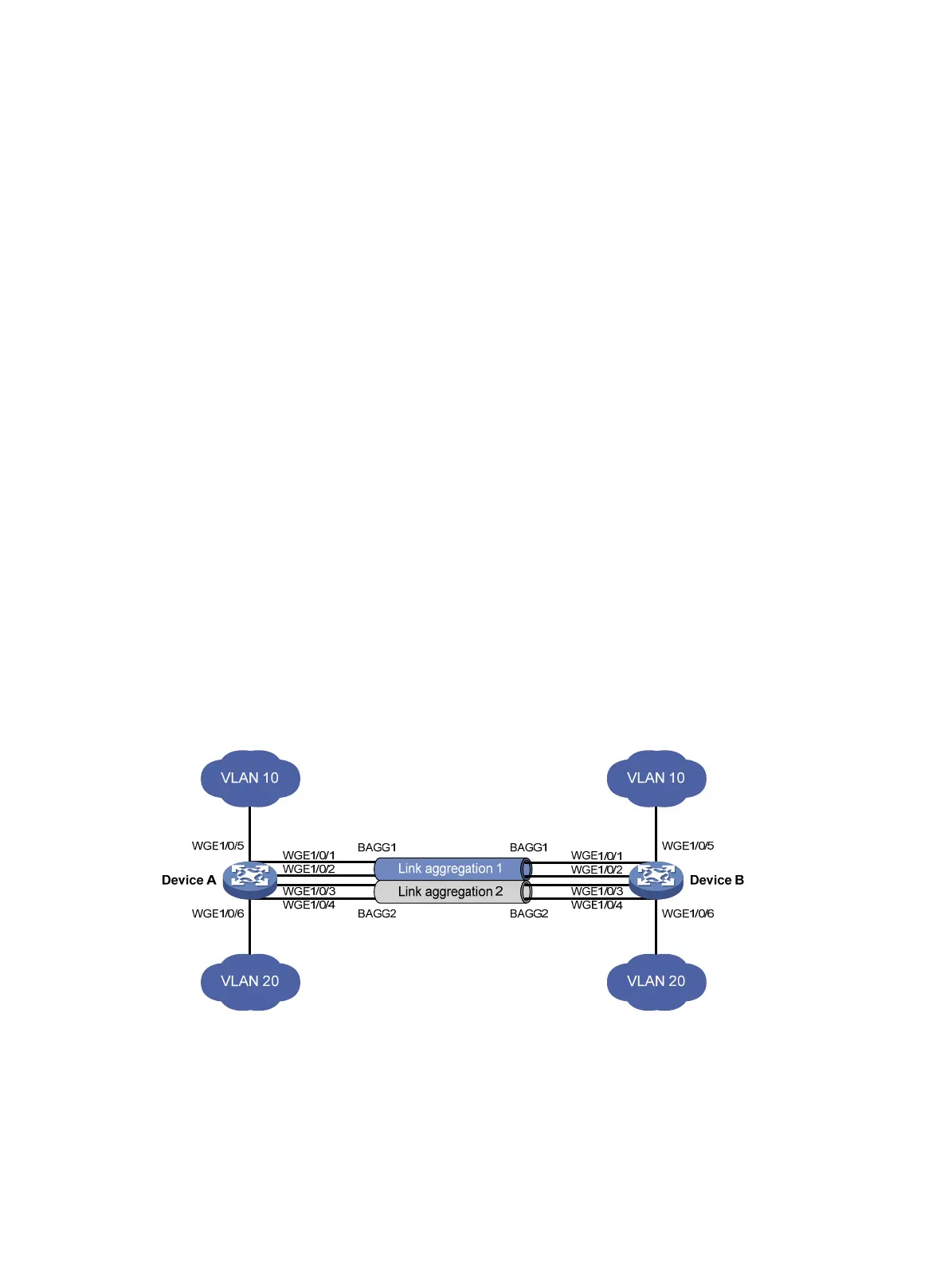

Figure 10 Network diagram
Procedure
1. Configure Device A:
# Create VLAN 10, and assign the port Twenty-FiveGigE 1/0/5 to VLAN 10.
<DeviceA> system-view
[DeviceA] vlan 10
[DeviceA-vlan10] port twenty-fivegige 1/0/5
